JS0308PP4-S

Active

NKK Switches

DIP / SIP SWITCH, PIANO KEY, 3 CIRCUITS, PIANO KEY, THROUGH HOLE, SPST, 24 V, 25 MA

Search across all available documentation for this part.

Active

NKK Switches

DIP / SIP SWITCH, PIANO KEY, 3 CIRCUITS, PIANO KEY, THROUGH HOLE, SPST, 24 V, 25 MA

Technical Specifications

Parameters and characteristics for this part

Specification	JS0308PP4-S

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	9.2 mm
Height Above Board	0.362 in
Length [x]	21.49 mm
Length [x]	0.846 in
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Mechanical Life	Actuator Type	Current Rating (Amps)	Circuit	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Contact Finish	Termination Style	Height Above Board	Height Above Board	Washable	Electrical Life	Mounting Type	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Contact Material	Body Material	Voltage Rating
NKK Switches JS0308PP4-S	2000 Cycles	Piano	25 mA	SPST	Raised	70 °C	-25 °C	21.49 mm	0.846 in	Gold	PC Pin	9.2 mm	0.362 in		2000 Steps	Through Hole Right Angle	8	0.1 in	Full	2.54 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

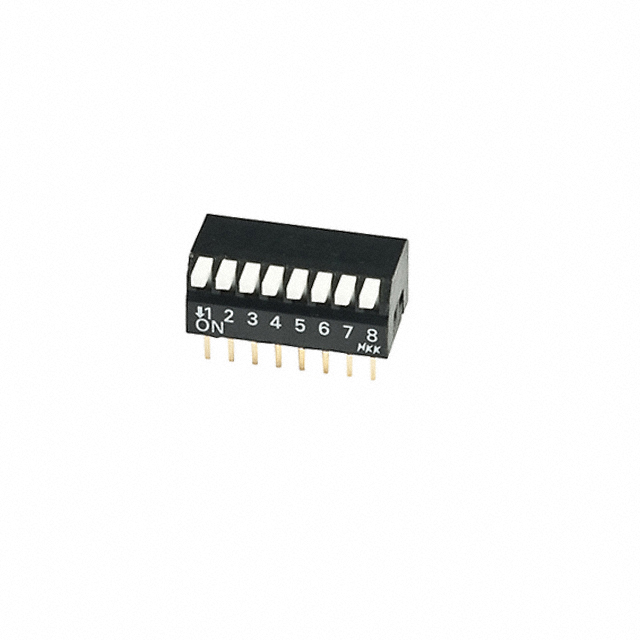

Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
