1191068F0712-L(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P-IEC 8.04'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1191068F0712-L(R)
ActiveGlobTek, Inc.
CORD 18AWG NEMA 5-15P-IEC 8.04'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1191068F0712-L(R) |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C5 |
| Approval Agency Marking | UL, CSA, cULus |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 7 A |
| Features | Hospital Grade |
| Length | 2.45 m |
| Length | 8.04 ft |
| Number of Conductors | 3 |
| Operating Temperature | 60 °C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 125 VAC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.34 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.37 | |||
| 50 | $ 5.23 | |||
| 100 | $ 5.10 | |||
| 300 | $ 4.85 | |||
Description
General part information
1191068 Series

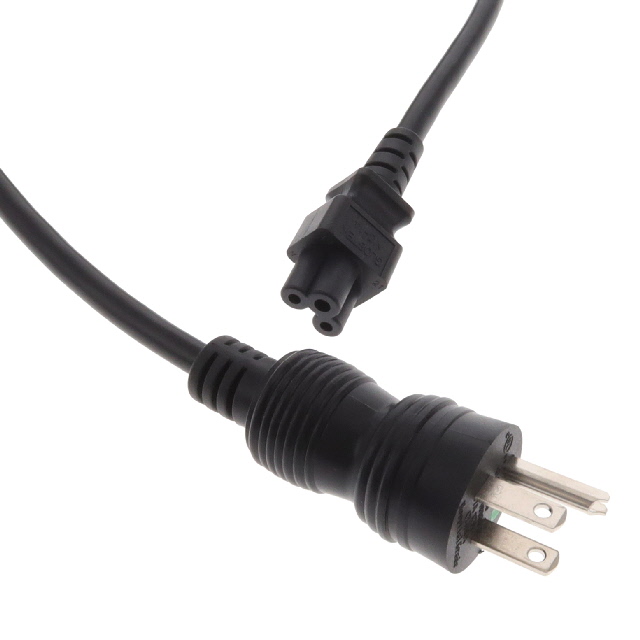

8.04' (2.45m) Power Cord Black NEMA 5-15P To IEC 320-C5 SJT
Documents
Technical documentation and resources
