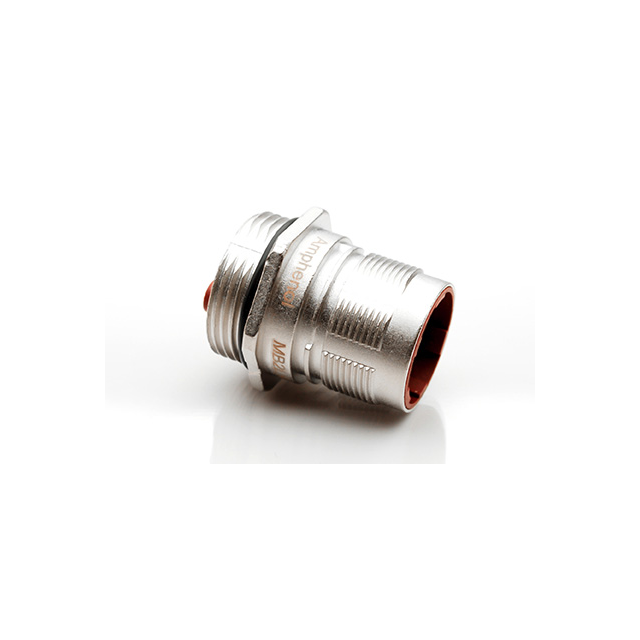

MB2LKN0800

Active

Amphenol Sine Systems Corp

8 POSITION JAM NUT RECEPTACLE, M

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

8 POSITION JAM NUT RECEPTACLE, M

Technical Specifications

Parameters and characteristics for this part

Specification	MB2LKN0800

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm, 2 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Shielded
Type	For Male Pins

Part	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insert Material	Shell Size - Insert	Contact Size	Ingress Protection	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Type	Material Flammability Rating	Contact Type	Connector Type	Mounting Feature	Orientation	Housing Color	Shell Material	Shielding	Fastening Type	Note	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB2LKNNG36	Nickel	-20 C	130 °C	Circular	Polyamide (PA66) Nylon 6/6	M23-9	1 mm 2 mm	IP67 - Dust Tight Waterproof	PE	3	5	9	For Male Pins	UL94 V-0	Crimp	Receptacle Housing	Bulkhead	Keyed	Silver	Zinc Die Cast	Shielded	Push-Twist	Contacts Not Included
Amphenol Sine Systems Corp MB2LKN0600	Nickel	-20 C	130 °C	Circular	Polyamide (PA66) Nylon 6/6	M23-6	2 mm	IP67 - Dust Tight Waterproof					For Male Pins	UL94 V-0	Crimp	Receptacle Housing	Bulkhead	Keyed	Silver	Zinc Die Cast	Shielded	Push-Twist	Contacts Not Included	6
Amphenol Sine Systems Corp MB2LKN0800	Nickel	-20 C	130 °C	Circular	Polyamide (PA66) Nylon 6/6	M23-8	1 mm 2 mm	IP67 - Dust Tight Waterproof	PE				For Male Pins	UL94 V-0	Crimp	Receptacle Housing	Bulkhead	Keyed	Silver	Zinc Die Cast	Shielded	Push-Twist	Contacts Not Included		3	8	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 11.45

General part information

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
