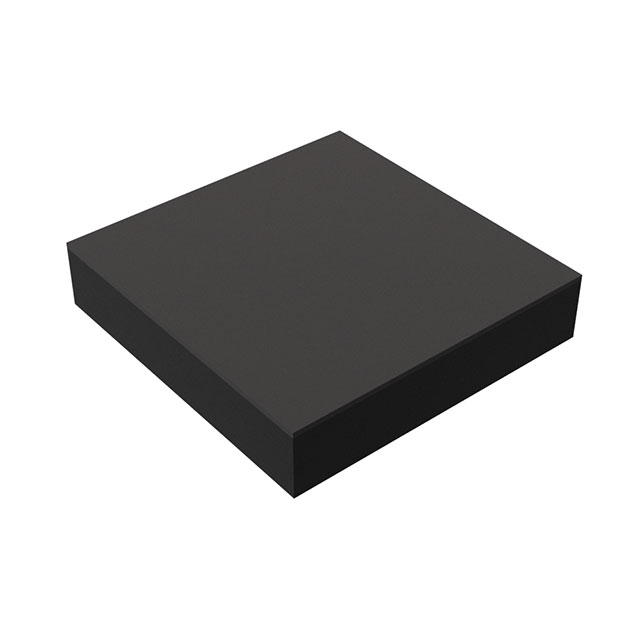

RP512Z181D-TR-F
ActiveNisshinbo Micro Devices Inc
IC REG BUCK 1.8V 300MA 8WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP512Z181D-TR-F
ActiveNisshinbo Micro Devices Inc
IC REG BUCK 1.8V 300MA 8WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP512Z181D-TR-F |
|---|---|
| Current - Output | 300 mA |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-XFBGA, WLCSP |
| Supplier Device Package | WLCSP-8-P1 |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.60 | |
| 10 | $ 1.43 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Digi-Reel® | 1 | $ 1.60 | ||
| 10 | $ 1.43 | |||
| 25 | $ 1.36 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.04 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
| Tape & Reel (TR) | 5000 | $ 0.60 | ||
Description
General part information
RP512 Series
Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 300mA 8-XFBGA, WLCSP
