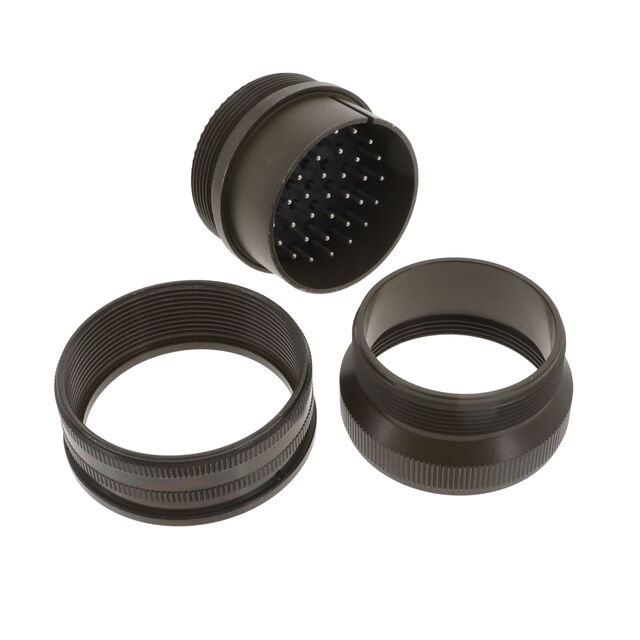

MS3106A36-15P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A36-15P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A36-15P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	36-15
Shielding	Unshielded

MS3106A36 Series

Part	Color	Number of Positions	Connector Type	Applications	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Qualification	Contact Finish - Mating	Features	Primary Material	Shell Finish	Contact Material	Shell Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Insert Material	Orientation	Shell Size - Insert	Current Rating (Amps)	Grade	Ingress Protection
Amphenol Industrial Operations MS3106A36-4S
Amphenol Industrial Operations MS3106A36-17S
Amphenol Industrial Operations MS3106A36-52P	Olive Drab	52	Male Pins Plug	Marine Military	36	52	MIL-DTL-5015	Silver	Backshell Coupling Nut	Metal	Olive Drab Chromate over Cadmium	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	-55 °C	125 °C	Unshielded	Neoprene	N
Amphenol Industrial Operations MS3106A36-10SX
Amphenol Industrial Operations MS3106A36-18P
Amphenol Industrial Operations MS3106A36-9S
Amphenol Industrial Operations MS3106A36-15P	Olive Drab	35	Male Pins Plug	Marine Military			MIL-DTL-5015	Silver	Backshell Coupling Nut	Metal	Olive Drab Chromate over Cadmium	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	-55 °C	125 °C	Unshielded	Neoprene	N	36-15	13 A	Military	Environment Resistant
Amphenol Industrial Operations MS3106A36-7S	Olive Drab		Female Sockets Plug	Marine Military	7	36	MIL-DTL-5015	Silver	Backshell Coupling Nut	Metal	Olive Drab Chromate over Cadmium	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	-55 °C	125 °C	Unshielded	Neoprene	N		13 A 23 A	Military	Environment Resistant
Amphenol Industrial Operations MS3106A36-4S-RES	Olive Drab		Female Sockets Plug	Marine Military			MIL-5015	Silver		Metal	Olive Drab Chromate over Cadmium	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	-55 °C	125 °C	Unshielded	Neoprene	N	36-4			Environment Resistant
Amphenol Industrial Operations MS3106A36-6P	Olive Drab	6	Male Pins Plug	Marine Military			MIL-DTL-5015	Silver	Backshell Coupling Nut	Metal	Olive Drab Chromate over Cadmium	Copper Alloy	Aluminum Alloy	Free Hanging (In-Line)	-55 °C	125 °C	Unshielded	Neoprene	N	36-6	80 A 150 A	Military	Environment Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.06
		10	$ 78.97
		25	$ 75.93
		50	$ 73.40
		100	$ 69.35

Description

General part information

MS3106A36 Series

35 Position Circular Connector Plug, Male Pins Solder Cup
