4127KG
ObsoleteTexas Instruments

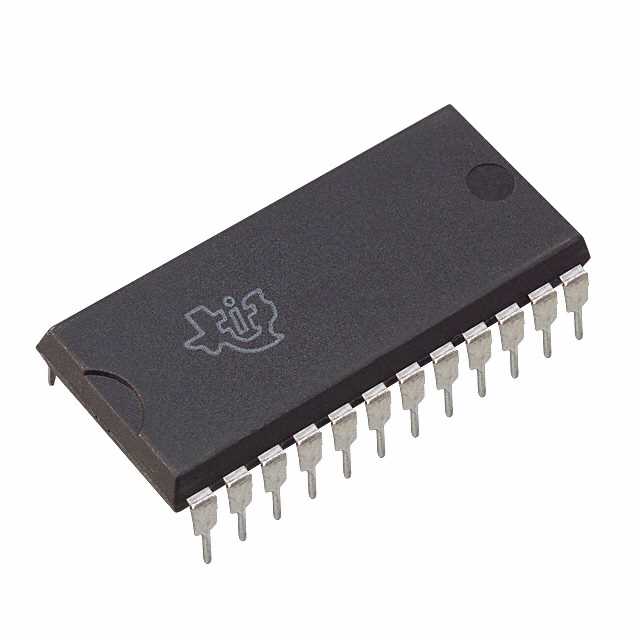

IC LOGARITHMIC 2 CIRCUIT 24CDIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4127KG
ObsoleteTexas Instruments
IC LOGARITHMIC 2 CIRCUIT 24CDIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4127KG |
|---|---|
| -3db Bandwidth | 90 kHz |
| Amplifier Type | Logarithmic |
| Current - Input Bias | 40 nA |
| Current - Output / Channel | 5 mA |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 24-CDIP |
| Supplier Device Package | 24-CDIP |
| Voltage - Supply Span (Max) [Max] | 32 V |
| Voltage - Supply Span (Min) [Min] | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
4127 Series
Logarithmic Amplifier 2 Circuit 24-CDIP
Documents
Technical documentation and resources
