NC4EBD-DC110V

Active

Panasonic Electric Works

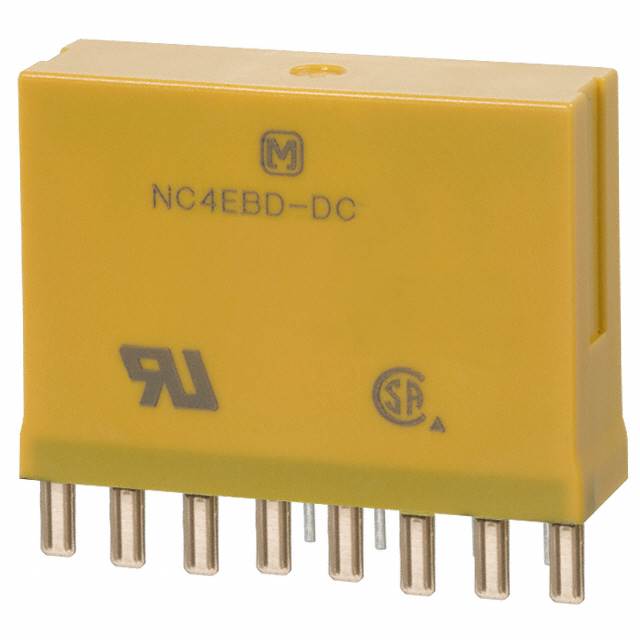

RELAY GEN PURPOSE 4PDT 5A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines Datasheet +2

NC4EBD-DC110V

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 110V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NC4EBD-DC110V

Approval Agency	CSA, UR
Coil Current	8.2 mA
Coil Resistance	13.5 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A
Load - Max Switching [Max]	1250 VA
Mounting Type	Socketable
Must Operate Voltage	88 VDC
Must Release Voltage	11 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC
Termination Style	Plug In

NC4EB Series

Part	Contact Form	Contact Rating (Current)	Operate Time	Contact Material	Coil Type	Termination Style	Seal Rating	Release Time	Coil Resistance	Approval Agency	Coil Voltage	Coil Current	Mounting Type	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Must Operate Voltage	Must Release Voltage	Load - Max Switching [Max]
Panasonic Electric Works NC4EBD-JP-DC5V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	PC Pin	Sealed - Fully	10 ms	34.7 Ohms	CSA UR	5 VDC	144 mA	Through Hole	250 VAC	-40 °C	55 °C	General Purpose	4 VDC	0.5 VDC	1250 VA
Panasonic Electric Works NC4EBD-JP-DC110V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	PC Pin	Sealed - Fully	10 ms	13.5 kOhms	CSA UR	110 VDC	8.2 mA	Through Hole	250 VAC	-40 °C	55 °C	General Purpose	88 VDC	11 VDC	1250 VA
Panasonic Electric Works NC4EBD-P-DC24V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	PC Pin	Sealed - Fully	10 ms	800 Ohms	CSA UR	24 VDC	30 mA	Through Hole	250 VAC	-40 °C	55 °C	General Purpose	19.2 VDC	2.4 VDC	1250 VA
Panasonic Electric Works NC4EBD-DC110V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	Plug In	Sealed - Fully	10 ms	13.5 kOhms	CSA UR	110 VDC	8.2 mA	Socketable	250 VAC	-40 °C	55 °C	General Purpose	88 VDC	11 VDC	1250 VA
Panasonic Electric Works NC4EBD-P-DC12V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	PC Pin	Sealed - Fully	10 ms	200 Ohms	CSA UR	12 VDC	60 mA	Through Hole	250 VAC	-40 °C	55 °C	General Purpose	9.6 VDC	1.2 VDC	1250 VA
Panasonic Electric Works NC4EBD-DC5V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	Plug In	Sealed - Fully	10 ms	34.7 Ohms	CSA UR	5 VDC	144 mA	Socketable	250 VAC	-40 °C	55 °C	General Purpose	4 VDC	0.5 VDC	1250 VA
Panasonic Electric Works NC4EBD-JP-DC6V	4PDT (4 Form C)	5 A	20 ms	Gold (Au) Silver Nickel (AgNi)	Non Latching	PC Pin	Sealed - Fully	10 ms	50 Ohms	CSA UR		120 mA	Through Hole	250 VAC	-40 °C	55 °C	General Purpose	4.8 VDC	0.6 VDC	1250 VA
