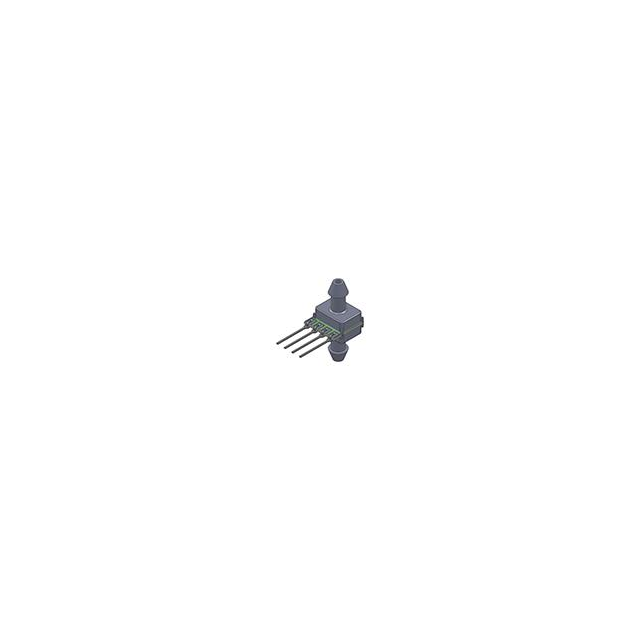

ELVH-001D-HRRD-I-NAA5
ActiveAmphenol All Sensors Corporation
SENSOR 1.02PSID 0.06" 8DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELVH-001D-HRRD-I-NAA5 |
|---|---|
| Accuracy | 0.25 % |
| Features | Temperature Compensated |
| Maximum Pressure | 103 kPa |
| Maximum Pressure | 14.94 PSI |
| Mounting Type | Through Hole |
| Operating Pressure [Max] | 1.02 PSI |
| Operating Pressure [Max] | 7 kPa |
| Operating Pressure [Min] | -7 kPa |
| Operating Pressure [Min] | -1.02 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | Analog Voltage |
| Package / Case | 8-DIP, Dual Ports, Same Side |
| Package / Case | 12.8 mm |
| Package / Case | 0.504 in |
| Port Size | Tube, Male, Dual |
| Port Size | 0.06 " |
| Port Size | 1.6 mm |
| Port Style | Barbed |
| Pressure Type | Differential |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 56.10 | |
| 5 | $ 47.31 | |||
| 10 | $ 43.97 | |||
| 25 | $ 39.91 | |||
| 40 | $ 37.98 | |||
| 80 | $ 35.30 | |||
Description
General part information
ELVH-001D Series
Pressure Sensor -1.02PSI ~ 1.02PSI (-7kPa ~ 7kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 8-DIP (0.504", 12.80mm), Dual Ports, Same Side
