0393550019

Obsolete

Molex

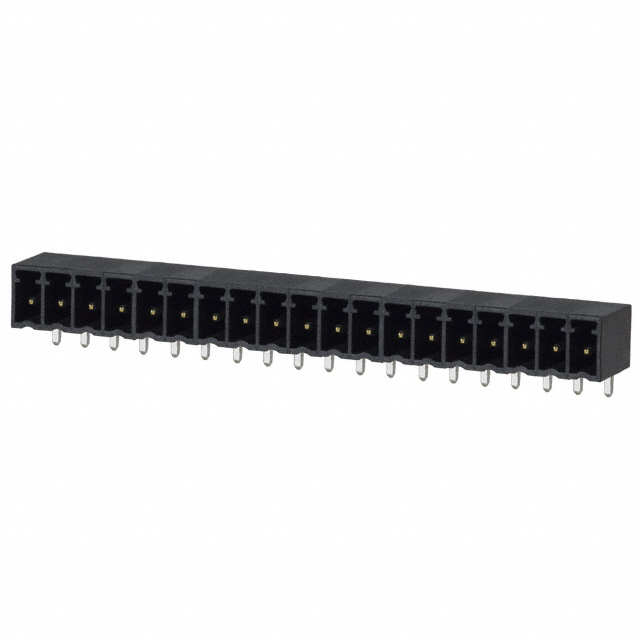

TERM BLOCK HDR 19POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

0393550019

Obsolete

Molex

TERM BLOCK HDR 19POS 90DEG 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0393550019

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.45 mm
Contact Tail Length	0.136 in
Current - UL	10 A
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.28 in
Insulation Height	7.1 mm
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	19
Operating Temperature	140 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	19
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039355 Series

Part	Contact Tail Length	Contact Tail Length	Operating Temperature	Contact Material	Color	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Termination Style	Number of Levels	Positions Per Level	Header Orientation	Contact Mating Finish	Mounting Type	Voltage - UL	Type	Current - UL	Housing Material	Number of Positions
Molex 0393550003	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	3	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6
Molex 0393550017	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	17	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6
Molex 0393550005	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	5	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6
Molex 0393550019	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	19	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	19
Molex 0393550002	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	2	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	2
Molex 0393550015	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	15	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	15
Molex 0393550011	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	11	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	11
Molex 0393550013	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	13	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	13
Molex 0393550006	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	6	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	6
Molex 0393550004	3.45 mm	0.136 in	140 °C	Brass	Black	3.5 mm	0.138 in	0.28 in	7.1 mm	Solder	1	4	90° Right Angle	Tin	Through Hole	300 V	Header Male Pins Shrouded (4 Side)	10 A	Polyamide (PA46) Nylon 4/6	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

039355 Series

19 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available
