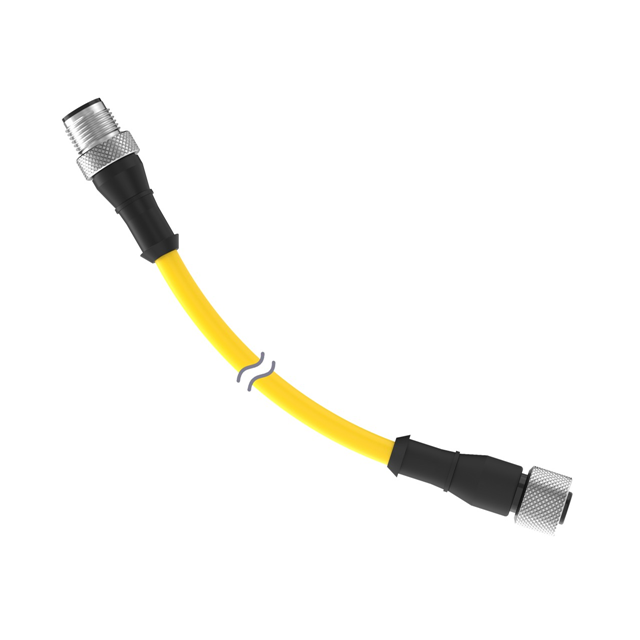

DEE2R-412-HG63

Active

BANNER ENGINEERING

CORDSET C-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DEE2R-412-HG63

Active

BANNER ENGINEERING

CORDSET C-CODE M12 TO A-CODE M12 DOUBLE ENDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DEE2R-412-HG63

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	6
2nd Connector Number of Positions Loaded	4 positions
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	3.66 m
Length	12 ft
Shielding	Unshielded
Usage	Industrial Environments

DEE2R Series

Part	1st Connector Orientation [custom]	1st Connector Number of Positions	2nd Connector Mounting Type	Length	Length	Usage	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Ingress Protection	2nd Connector Gender	Assembly Configuration	1st Connector Mounting Type	Shielding	1st Connector Gender	Cable Type	2nd Connector Number of Positions Loaded	2nd Connector Type	2nd Connector Number of Positions	Cable Material	Color	1st Connector Type	2nd Connector Shell Size - Insert	Length [x]	Length [x]	2nd Connector Number of Positions Loaded
BANNER ENGINEERING DEE2R-820D	Keyed	8 positions	Free Hanging (In-Line)	20 ft	6.1 m	Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12
BANNER ENGINEERING DEE2R-845D	Keyed	8 positions	Free Hanging (In-Line)	45 ft	13.72 m	Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12
BANNER ENGINEERING DEE2R-824D	Keyed	8 positions	Free Hanging (In-Line)	24 ft	7.3 m	Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12
BANNER ENGINEERING DEE2R-85D	Keyed	8 positions	Free Hanging (In-Line)	5 '	1.52 m	Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12
BANNER ENGINEERING DEE2R-82D	Keyed	8 positions	Free Hanging (In-Line)			Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12	2 '	609.6 mm
BANNER ENGINEERING DEE2R-813D	Keyed	8 positions	Free Hanging (In-Line)			Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12
BANNER ENGINEERING DEE2R-58D	Keyed	5	Free Hanging (In-Line)			Industrial Environments	All	M12	IP67 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Shielded	Male Pins	Round	All	Plug	5	Polyvinyl Chloride (PVC)	Black	Receptacle	M12	8 ft	2.44 m
BANNER ENGINEERING DEE2R-83D	Keyed	8 positions	Free Hanging (In-Line)			Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12	3 ft	914.4 mm
BANNER ENGINEERING DEE2R-412-HG63	Keyed	4	Free Hanging (In-Line)	12 ft	3.66 m	Industrial Environments	All	M12	IP67 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round		Plug	6	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12			4 positions
BANNER ENGINEERING DEE2R-810D	Keyed	8 positions	Free Hanging (In-Line)	10 ft	3.05 m	Industrial Environments	All	M12	IP68 - Dust Tight Waterproof	Female Sockets	Standard	Free Hanging (In-Line)	Unshielded	Male Pins	Round	All	Plug	8	Polyvinyl Chloride (PVC)	Yellow	Receptacle	M12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.00
Newark	Each	1	$ 110.00

Description

General part information

DEE2R Series

Circular Cable Assembly Unshielded 12.00' (3.66m)
