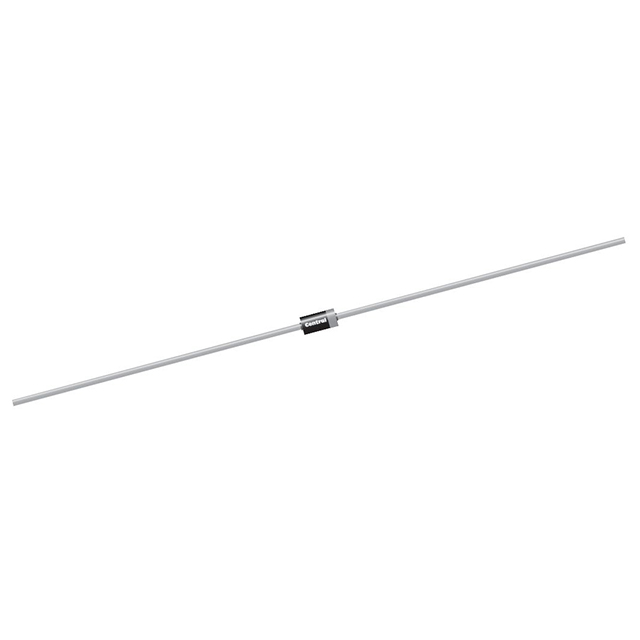

P6KE15A TR PBFREE

Active

Central Semiconductor Corp

TVS DIODE 12.8VWM 21.2VC DO15

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TVS DIODE 12.8VWM 21.2VC DO15

Technical Specifications

Parameters and characteristics for this part

Specification	P6KE15A TR PBFREE

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	28 A
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	DO-204AC, DO-15, Axial
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	DO-15
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	14.3 V
Voltage - Clamping (Max) @ Ipp	21.2 V
Voltage - Reverse Standoff (Typ)	12.8 V

Part	Power Line Protection	Voltage - Breakdown (Min) [Min]	Mounting Type	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Unidirectional Channels [custom]	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Applications	Voltage - Reverse Standoff (Typ)	Package / Case
Central Semiconductor Corp P6KE15A TR PBFREE		14.3 V	Through Hole	600 W	21.2 V	1	Zener	DO-15	175 ░C	-65 °C	28 A	General Purpose	12.8 V	Axial DO-15 DO-204AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

21.2V Clamp 28A Ipp Tvs Diode Through Hole DO-15
