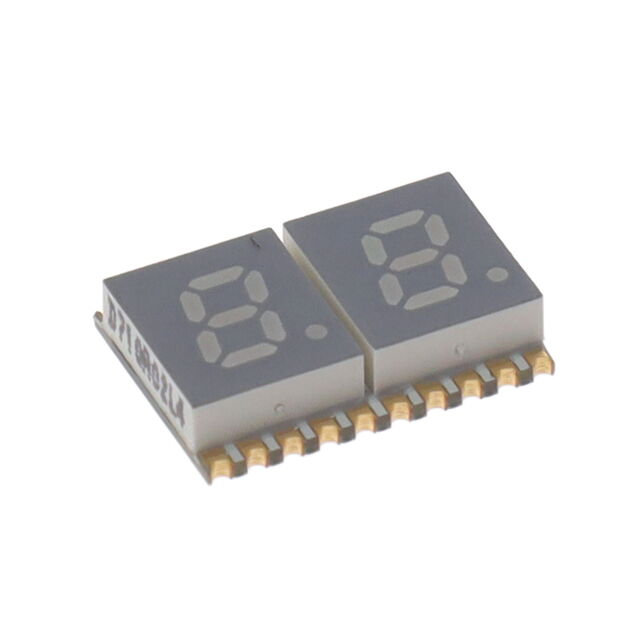

ACDA02-41SGWA-F01

Active

Kingbright

7 SEG NUMERIC DISPLAY, SUPER BRIGHT GREEN, 5.08MM, ROHS COMPLIANT PACKAGE-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACDA02-41SGWA-F01

Active

Kingbright

7 SEG NUMERIC DISPLAY, SUPER BRIGHT GREEN, 5.08MM, ROHS COMPLIANT PACKAGE-20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACDA02-41SGWA-F01

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	5.08 mm
Digit/Alpha Size	0.2 in
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.315 "
Size / Dimension [x]	8 mm
Size / Dimension [y]	0.555 "
Size / Dimension [y]	14.1 mm
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

ACDA02 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Display Type	Package / Case	Common Pin	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Color	Number of Characters	Wavelength - Peak	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
Kingbright ACDA02-41EWA-F01	5.08 mm	0.2 in	10 mA	7-Segment	20-SMD No Lead	Common Anode	3.2 mcd	2.5 V	Red	2	627 nm	75 mw	14.1 mm	0.555 "	3 mm	0.394 "	10 mm	0.118 "
Kingbright ACDA02-41SGWA-F01	5.08 mm	0.2 in	20 mA	7-Segment	20-SMD No Lead	Common Anode	3.9 mcd	2.2 V	Green	2	565 nm	62.5 mW	14.1 mm	0.555 "	3 mm	0.315 "	8 mm	0.118 "
Kingbright ACDA02-41CGKWA-F01	5.08 mm	0.2 in	20 mA	7-Segment	20-SMD No Lead	Common Anode	12 mcd	2.1 V	Green	2		75 mw	14.1 mm	0.555 "	3 mm	0.315 "	8 mm	0.118 "
Kingbright ACDA02-41SURKWA-F01	5.08 mm	0.2 in	20 mA	7-Segment	20-SMD No Lead	Common Anode	30 mcd	1.95 V	Red	2	650 nm	75 mw	14.1 mm	0.555 "	3 mm	0.315 "	8 mm	0.118 "
Kingbright ACDA02-41SYKWA-F01	5.08 mm	0.2 in	20 mA	7-Segment	20-SMD No Lead	Common Anode	50 mcd	2 V	Yellow	2	590 nm	75 mw	14.1 mm	0.555 "	3 mm	0.315 "	8 mm	0.118 "
Kingbright ACDA02-41SEKWA-F01	5.08 mm	0.2 in	20 mA	7-Segment	20-SMD No Lead	Common Anode	37 mcd	2.1 V		2	610 nm	75 mw	14.1 mm	0.555 "	3 mm	0.315 "	8 mm	0.118 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.90
		10	$ 3.64
		100	$ 2.90
	Digi-Reel®	1	$ 4.90
		10	$ 3.64
		100	$ 2.90
	Tape & Reel (TR)	300	$ 2.67
		600	$ 2.55
		900	$ 2.49
		1500	$ 2.42
		2100	$ 2.38
		3000	$ 2.34

Description

General part information

ACDA02 Series

Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 20mA 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead
