Q-7101Q0003009I
ActiveAmphenol Custom Cable

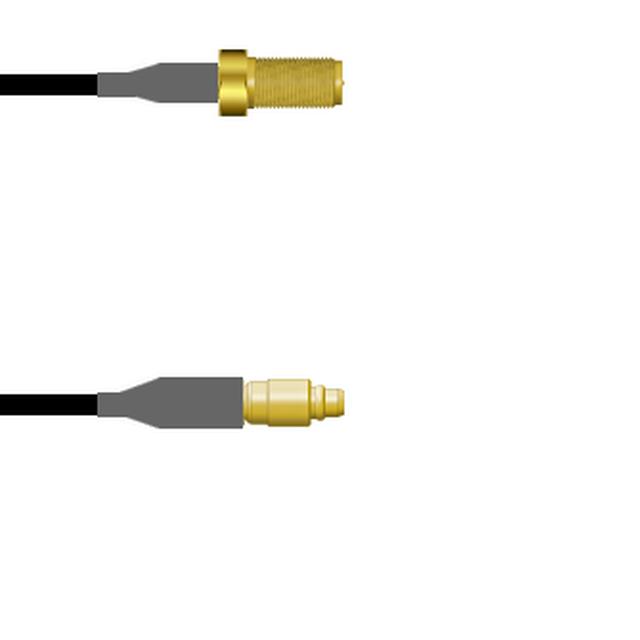

COAX CBL RP-SMA TO MMCX 9"
Deep-Dive with AI
Search across all available documentation for this part.
Q-7101Q0003009I
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO MMCX 9"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-7101Q0003009I |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 9 " |
| Length | 228.6 mm |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 56.00 | |
| 25 | $ 54.91 | |||
| 50 | $ 53.81 | |||
| 100 | $ 52.71 | |||
| 250 | $ 51.62 | |||
Description
General part information
Q-7101Q0 Series
Cable Assembly Coaxial RP-SMA to MMCX RG-174 9.000" (228.60mm)
Documents
Technical documentation and resources
No documents available
