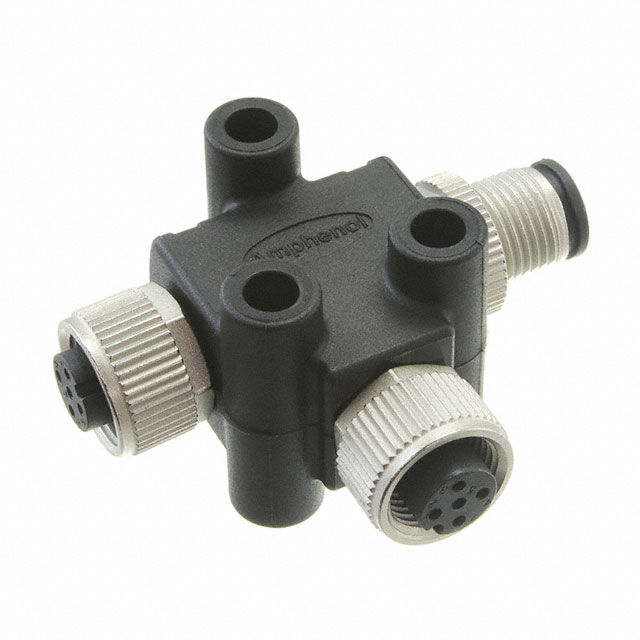

TA-A03F-A03F-A03M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) FEMALE FEM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA-A03F-A03F-A03M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) MALE MALE, (END 3) FEMALE FEM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-A03F-A03F-A03M-01 |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Female Sockets |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Features | Coupling Nut |
| Housing Material | Thermoplastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 3 |
| Number of Positions (Convert To) | 3 |
| Number of Positions (Convert To) | 2 |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TA-A03F Series
Circular Connector Distributor T-Shaped 3/3 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
