AOZ1321DI-02

Active

Alpha & Omega Semiconductor Inc.

IC PWR SWITCH P-CHANNEL 1:1 4DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

IC PWR SWITCH P-CHANNEL 1:1 4DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ1321DI-02

Current - Output (Max) [Max]	2 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel

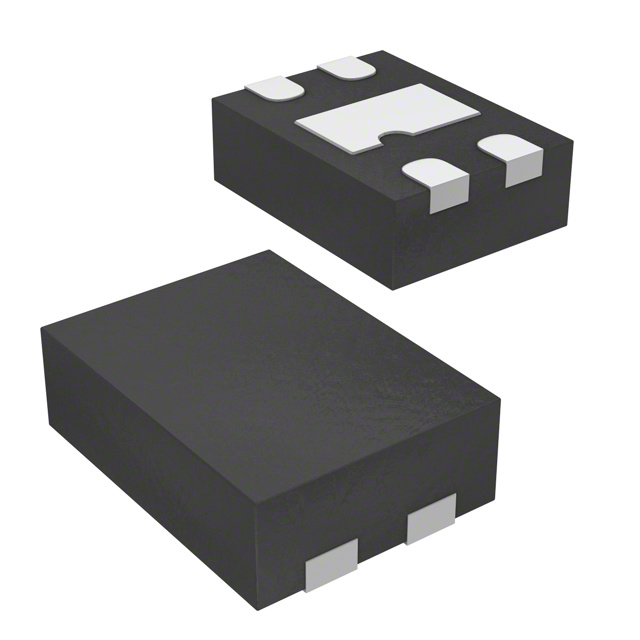

Package / Case	4-UFDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	60 mOhm
Supplier Device Package	4-DFN-EP (1.2x1.6)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Supply (Vcc/Vdd)	Interface	Output Type	Input Type	Rds On (Typ)	Supplier Device Package	Switch Type	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Ratio - Input:Output [custom]	Number of Outputs	Current - Output (Max) [Max]	Features	Output Configuration
Alpha & Omega Semiconductor Inc. AOZ1321DI-02	-40 °C	125 ¯C	Surface Mount		On/Off	P-Channel	Non-Inverting	60 mOhm	4-DFN-EP (1.2x1.6)	General Purpose	4-UFDFN Exposed Pad	5.5 V	1.6 V	1:1	1	2 A	Load Discharge Slew Rate Controlled	High Side
