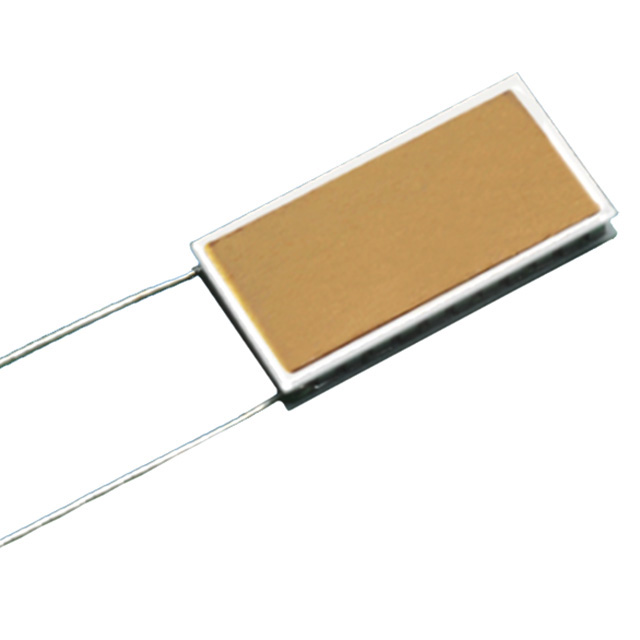

CM35-1.9-07AC

Active

Marlow Industries, Inc.

TEM 12.19X5.99X1.65MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 12.19X5.99X1.65MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Stages	Current - Max [Max]	Voltage - Max [Max]	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Height [z]	Features	Resistance
Marlow Industries, Inc. CM35-1.9-01AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.65 mm	Exterior Metallization (Both Sides) Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-04AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.65 mm	Exterior Metallization (Both Sides) Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-07AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.65 mm		1.87 Ohms
Marlow Industries, Inc. CM35-1.9-05AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.65 mm		1.87 Ohms
Marlow Industries, Inc. CM35-1.9-09AN	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.67 mm	Lead Wires	1.87 Ohms
Marlow Industries, Inc. CM35-1.9-06AC	1	1.9 A	4.2 V	5.2 W	12.19 mm	5.99 mm	27 °C 71 °C	1.65 mm		1.87 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 35.48

General part information

Peltier Module 5.2W @ 27°C 1.9 A 85°C

Technical documentation and resources
