AD-NJHDBNCJ-1

Active

Amphenol RF

HD-BNC JACK TO N-TYPE JACK ADAPT

Search across all available documentation for this part.

Active

Amphenol RF

HD-BNC JACK TO N-TYPE JACK ADAPT

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NJHDBNCJ-1

Adapter Series	N, BNC, HD
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Operating Temperature [Max]	Operating Temperature [Min]	Conversion Type	Impedance	Mounting Type	Mating Cycles	Convert From (Adapter End)	Convert To (Adapter End)	Body Material	Dielectric Material	Center Contact Plating	Center Gender	Frequency - Max [Max]	Center Contact Material	Style	Adapter Series	Body Finish	Adapter Type	Fastening Type
Amphenol RF AD-NJHDBNCJ-1	85 °C	-40 °C	Between Series	75 Ohms	Free Hanging (In-Line)	500	BNC HD Jack Female Socket	Female Socket N Jack	Brass	Polytetrafluoroethylene (PTFE)	Gold	Female to Female	12 GHz	Beryllium Copper	Straight	BNC HD N	Nickel	Jack to Jack	Bayonet Lock Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

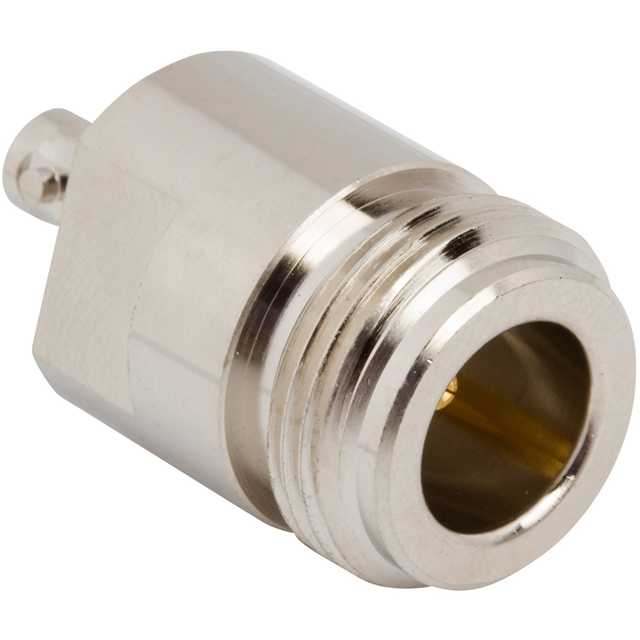

Adapter Coaxial Connector BNC HD Jack, Female Socket To N Jack, Female Socket 75 Ohms
