SSI-LXMP5011SRC150
ObsoleteLumex Opto/Components Inc.
LED 12MMSQR SUPREDCLR 6"LD PNLMT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXMP5011SRC150
ObsoleteLumex Opto/Components Inc.
LED 12MMSQR SUPREDCLR 6"LD PNLMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXMP5011SRC150 |
|---|---|
| Current | 30 mA |
| Lamp Color | Red |
| Lens Color | Colorless |
| Lens Size | 9.1 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 60 mcd |
| Panel Cutout Dimensions [x] | 10.41 mm |
| Panel Cutout Dimensions [x] | 0.41 in |
| Panel Cutout Dimensions [y] | 0.41 in |
| Panel Cutout Dimensions [y] | 10.41 mm |
| Panel Cutout Shape | Square |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 1.8 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSI-LXMP5011 Series

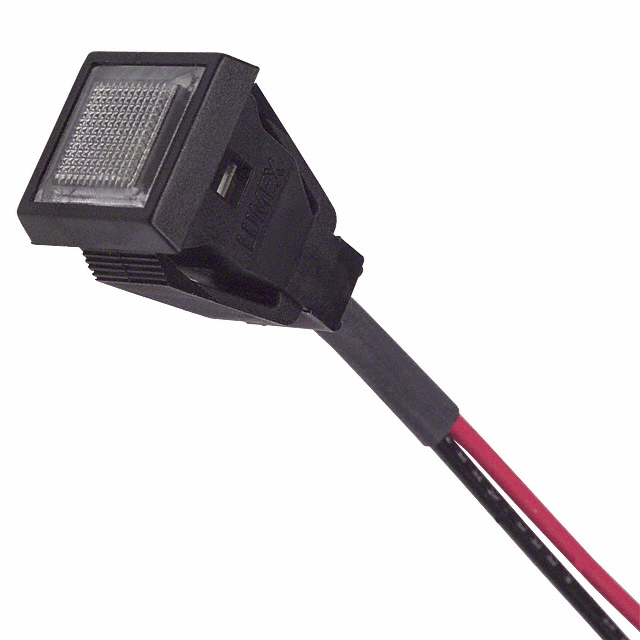

LED Panel Indicator Red Clear 60° 1.8V 30mA Wire Leads - 6" (152.40mm)
