RLM-1632W-4F-R002-FNH

Active

Delta Electronics/Cyntec

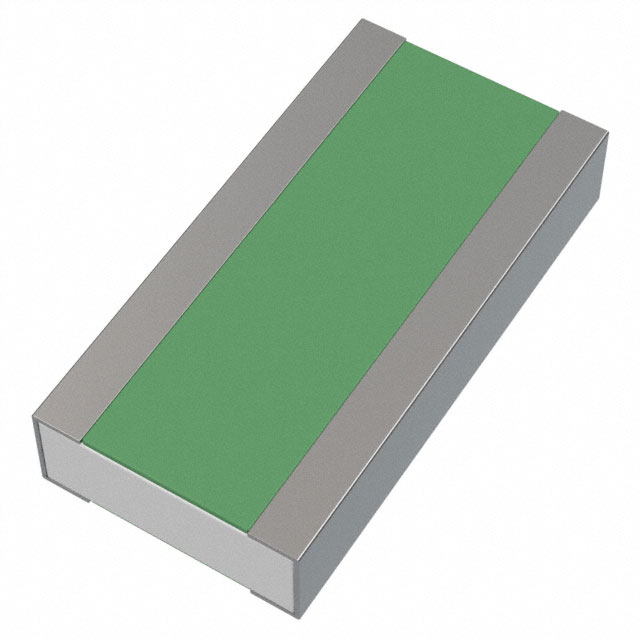

RES 0.002 OHM 1% 1/2W 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RLM-1632W-4F-R002-FNH

Active

Delta Electronics/Cyntec

RES 0.002 OHM 1% 1/2W 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLM-1632W-4F-R002-FNH

Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	Wide 1206 (3216 Metric), 0612
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	2 mOhms
Size / Dimension [x]	0.063 in, 1.6 mm
Size / Dimension [y]	0.126 in, 3.2 mm
Supplier Device Package	0612
Temperature Coefficient	150 ppm/°C
Tolerance	1 %

RLM-1632 Series

Part	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Package / Case	Number of Terminations	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Size / Dimension [y]	Size / Dimension [x]
Delta Electronics/Cyntec RLM-1632W-4F-R010-FNH	10 mOhms	0.7 mm	0.028 in	0.5 W	0.5 W	Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C
Delta Electronics/Cyntec RLM-1632W-6F-R010-FNH	10 mOhms	0.7 mm	0.028 in	1 W		Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C
Delta Electronics/Cyntec RLM-1632W-6F-R003-FNH	3 mOhms	0.7 mm	0.028 in	1 W		Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C
Delta Electronics/Cyntec RLM-1632W-4F-R005-FNH	5 mOhms	0.7 mm	0.028 in	0.5 W	0.5 W	Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C
Delta Electronics/Cyntec RLM-1632W-6F-R001-FNH	1 mOhms			1 W		Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	200 ppm/°C	0.035 "	0.9 mm
Delta Electronics/Cyntec RLM-1632W-6F-R005-FNH	5 mOhms	0.7 mm	0.028 in	1 W		Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C
Delta Electronics/Cyntec RLM-1632W-4F-R002-FNH	2 mOhms	0.7 mm	0.028 in	0.5 W	0.5 W	Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	150 ppm/°C
Delta Electronics/Cyntec RLM-1632-6F-R001-FNH	1 mOhms			1 W		1206 (3216 Metric)	2	1206	1.6 mm	3.2 mm	1 %	170 °C	-55 °C	100 ppm/°C	0.031 "	0.8 mm	Current Sense	0.063 in	0.126 "
Delta Electronics/Cyntec RLM-1632-6F-R002-FNH	2 mOhms			1 W		1206 (3216 Metric)	2	1206	1.6 mm	3.2 mm	1 %	170 °C	-55 °C	100 ppm/°C	0.031 "	0.8 mm	Current Sense	0.063 in	0.126 "
Delta Electronics/Cyntec RLM-1632W-6F-R004-FNH	4 mOhms	0.7 mm	0.028 in	1 W		Wide 1206 (3216 Metric) 0612	2	0612	0.126 in 3.2 mm	0.063 in 1.6 mm	1 %	170 °C	-55 °C	100 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.55
		10	$ 0.44
		25	$ 0.40
		50	$ 0.36
		100	$ 0.29
		250	$ 0.28
		500	$ 0.22
		1000	$ 0.18
	Digi-Reel®	1	$ 0.55
		10	$ 0.44
		25	$ 0.40
		50	$ 0.36
		100	$ 0.29
		250	$ 0.28
		500	$ 0.22
		1000	$ 0.18
	Tape & Reel (TR)	4000	$ 0.16

Description

General part information

RLM-1632 Series

2 mOhms ±1% 0.5W, 1/2W Chip Resistor Wide 1206 (3216 Metric), 0612
