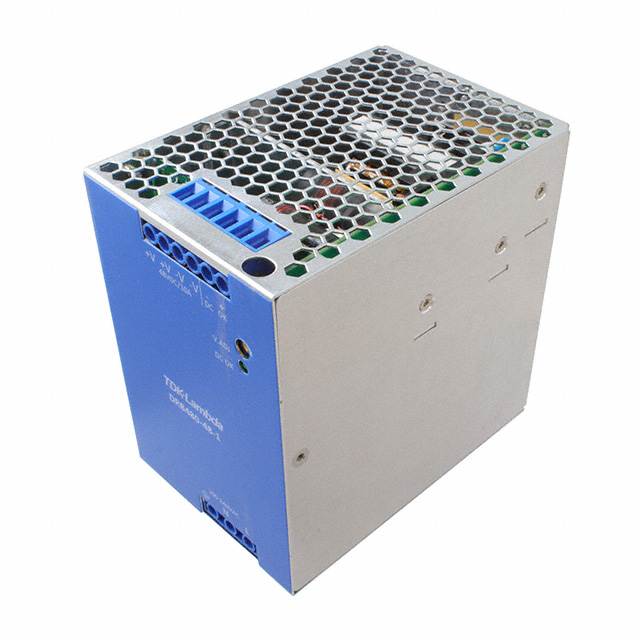

DRB480-48-1

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 48 V, 10 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 48 V, 10 A

Technical Specifications

Parameters and characteristics for this part

Specification	DRB480-48-1

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	Industrial, ITE (Commercial)
Current - Output (Max) [Max]	10 A
Efficiency	92 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	480 W
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.92 in
Size / Dimension [y]	84 mm
Size / Dimension [y]	3.31 "
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Current - Output (Max) [Max]	Voltage - Isolation	Input Type	Features	Voltage - Output 1	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)
TDK-LAMBDA DRB480-48-1	10 A	3000 V	AC	Adjustable Output PFC Universal Input	48 V	1	Industrial ITE (Commercial)	-20 °C	70 °C	90 VAC	264 VAC	92 %	125 mm	4.88 "	4.92 in	84 mm	124 mm	3.31 "	480 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 193.46
Newark	Each	1	$ 192.89

General part information

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 48 V, 10 A
