56.32.9.024.0074
ActiveFinder Relays, Inc.

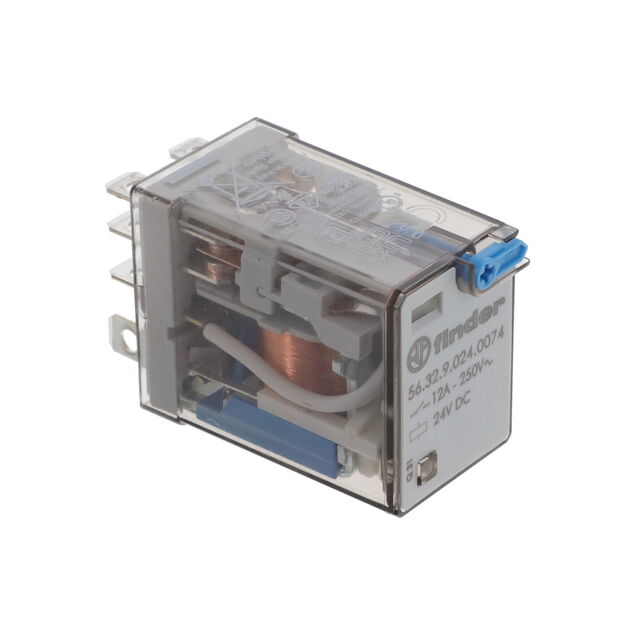

RELAY GEN PURPOSE DPDT 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56.32.9.024.0074
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE DPDT 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56.32.9.024.0074 |
|---|---|
| Approval Agency | cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC |
| Coil Current | 40 mA |
| Coil Resistance | 600 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
56.32.9 Series
| Part | Release Time | Relay Type | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Coil Type | Contact Rating (Current) | Must Operate Voltage | Contact Form | Switching Voltage [Max] | Approval Agency | Operate Time | Coil Voltage | Mounting Type | Termination Style | Coil Resistance | Contact Material | Coil Current | Load - Max Switching | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 4.8 VDC | Non Latching | 12 A | 19.2 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 24 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 600 Ohms | Silver Nickel (AgNi) | 40 mA | 4800 VA | |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 4.8 VDC | Non Latching | 12 A | 19.2 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 24 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 600 Ohms | Silver Nickel (AgNi) | 40 mA | 4800 VA | Diode Lighted Indicator Test Button |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 2.4 VDC | Non Latching | 12 A | 9.6 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 12 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 140 Ohms | Silver Nickel (AgNi) | 86 mA | 4800 VA | |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 25 VDC | Non Latching | 12 A | 100 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 125 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 17.3 kOhms | Silver Nickel (AgNi) | 7.2 mA | 4800 VA | Diode Lighted Indicator Test Button |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 4.8 VDC | Non Latching | 12 A | 19.2 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 24 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 600 Ohms | Silver Nickel (AgNi) | 40 mA | 4800 VA | |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 25 VDC | Non Latching | 12 A | 100 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 125 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 17.3 kOhms | Silver Nickel (AgNi) | 7.2 mA | 4800 VA | Diode Lighted Indicator |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 2.4 VDC | Non Latching | 12 A | 9.6 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 12 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 140 Ohms | Silver Nickel (AgNi) | 86 mA | 4800 VA | Lighted Indicator Test Button |
Finder Relays, Inc. | 6 ms | General Purpose | -40 °C | 70 °C | 4.8 VDC | Non Latching | 12 A | 19.2 VDC | DPDT (2 Form C) | 400 VAC | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 9 ms | 24 VDC | Socketable | Plug In Quick Connect - 0.187" (4.7mm) | 600 Ohms | Silver Nickel (AgNi) | 40 mA | 4800 VA | Lighted Indicator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.20 | |
| 10 | $ 13.51 | |||
| 30 | $ 12.84 | |||
| 50 | $ 12.16 | |||
| 100 | $ 11.49 | |||
| 250 | $ 10.47 | |||
| 500 | $ 9.80 | |||
| 1000 | $ 9.29 | |||
Description
General part information
56.32.9 Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
