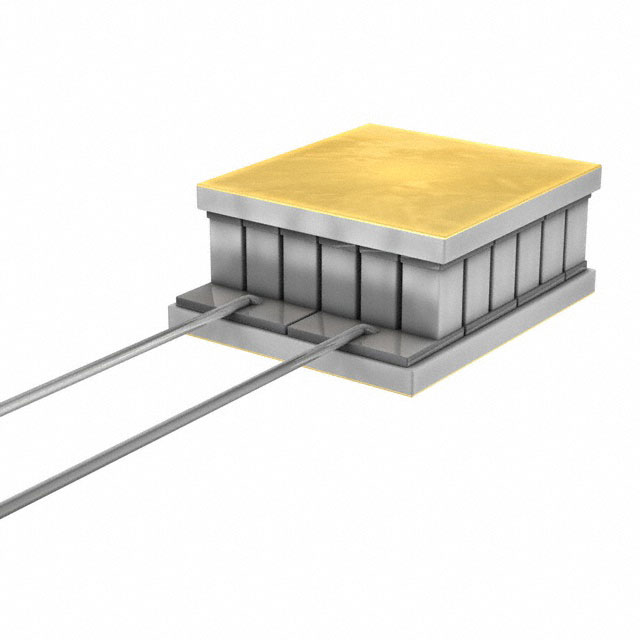

430779-502

Active

Laird Thermal Systems, Inc.

PELTIR OT12,18,F2A,0606,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR OT12,18,F2A,0606,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Current - Max [Max]	Features	Qmax @ Th	Number of Stages	Height [z]	Resistance	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]
Laird Thermal Systems, Inc. 430779-501	80 °C	1.2 A	Lead Wires Non-Sealed	1.5 W	1	2.69 mm	1.57 Ohms	67 °C	7.2 mm	6 mm
Laird Thermal Systems, Inc. 430779-503	80 °C	1.2 A	Lead Wires Sealed - Silicone RTV	1.5 W	1	2.69 mm	1.57 Ohms	67 °C	7.2 mm	6 mm
Laird Thermal Systems, Inc. 430779-502	80 °C	1.2 A	Lead Wires Non-Sealed	1.5 W	1	3.07 mm	1.57 Ohms	67 °C	7.2 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 1.5W @ 25°C 1.2 A 80°C
