0192730009
ActiveMolex

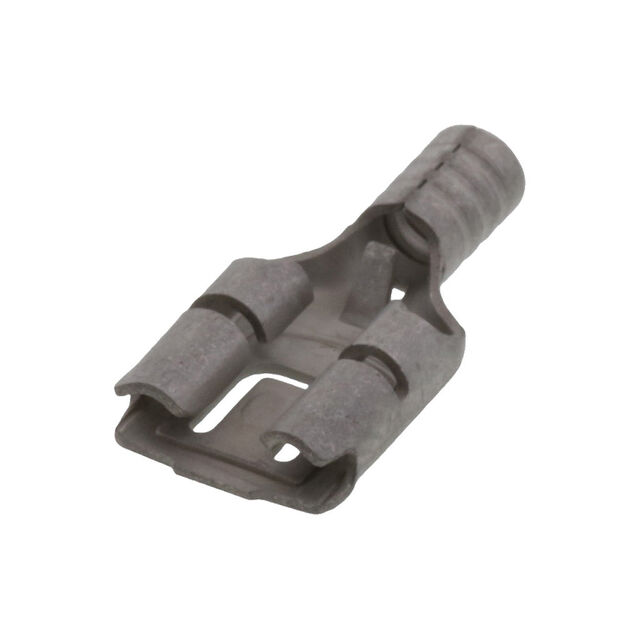

CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
0192730009
ActiveMolex
CONN QC RCPT 18-22AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192730009 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.67 " |
| Length - Overall [x] | 17.02 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 7500 | $ 0.10 | |
Description
General part information
019273 Series
0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
