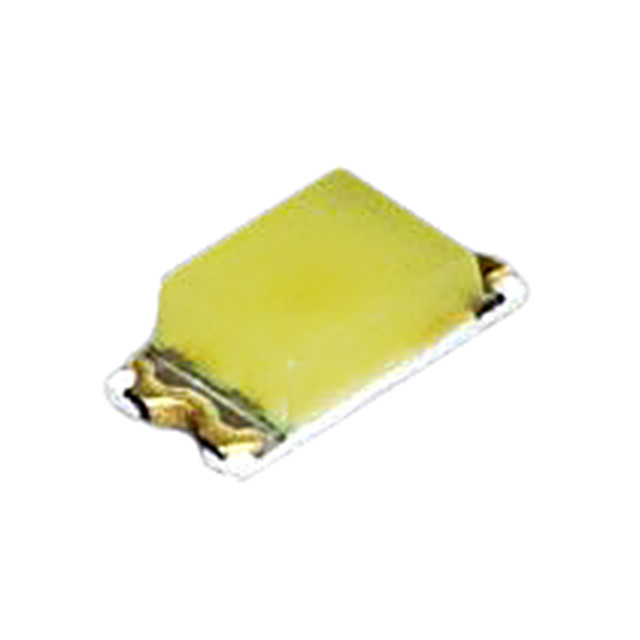

SMLD12E2N1WT86
ActiveRohm Semiconductor
INDUSTRY STANDARD 0603 SIZE, LONG LIFE TYPE, BLUE-GREEN CHIP LED
Deep-Dive with AI
Search across all available documentation for this part.
SMLD12E2N1WT86
ActiveRohm Semiconductor
INDUSTRY STANDARD 0603 SIZE, LONG LIFE TYPE, BLUE-GREEN CHIP LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLD12E2N1WT86 |
|---|---|
| Color | Blue-Green |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 120 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 0603 |
| Supplier Device Package | 1608 |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Dominant | 505 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.03 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 1.03 | ||
| 10 | $ 0.63 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 3000 | $ 0.29 | ||
| 6000 | $ 0.28 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
| 21000 | $ 0.26 | |||
| 30000 | $ 0.25 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.91 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
Description
General part information
SMLD12E2N1W Series
SMLD12E2N1W has a long life and the residual luminous rate exceeds 90% even after 1000 hours (under Ta=85℃,IF=20mA).
