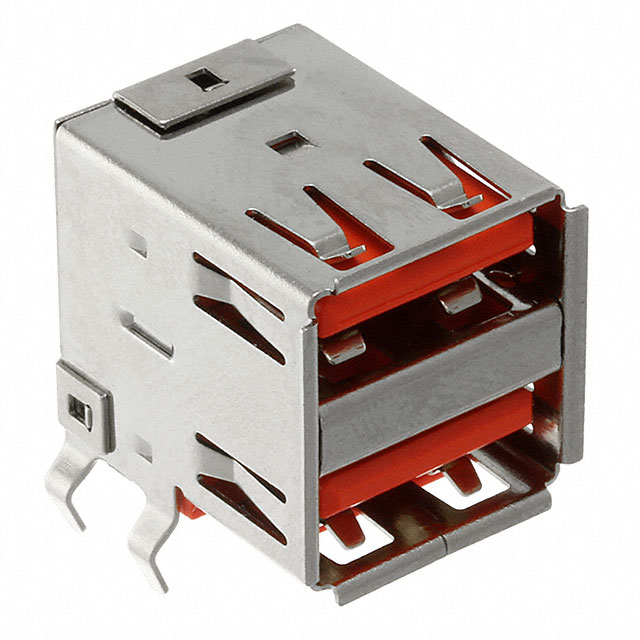

USBR-A-D-S-O-TH
ActiveSamtec Inc.
CONN RCPT USB2.0 TYPEA 8POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
USBR-A-D-S-O-TH
ActiveSamtec Inc.
CONN RCPT USB2.0 TYPEA 8POS R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USBR-A-D-S-O-TH |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Orange |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 8 |
| Number of Ports | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -50 °C |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.05 | |
| 50 | $ 2.57 | |||
| 100 | $ 2.10 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.32 | |||
Description
General part information
USBR-A Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 8 Position Through Hole, Right Angle
