Technical Specifications
Parameters and characteristics for this part
| Specification | MP24895GJ-Z |
|---|---|
| Applications | Signage, Lighting, Backlight |
| Current - Output / Channel | 700 mA |
| Dimming | Analog, PWM |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

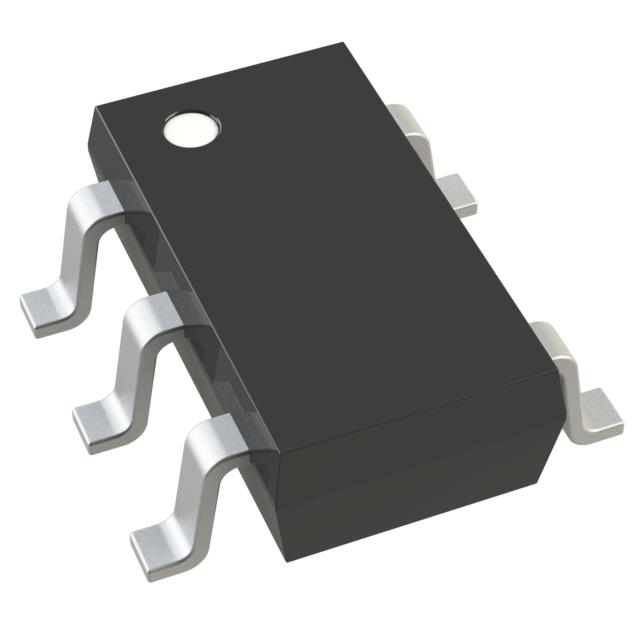

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Topology | Step-Down (Buck) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 36 V |
| Voltage - Supply (Min) [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.67 | |
| 6000 | $ 0.66 | |||
Description
General part information
MP24895 Series
The MP24895 is step-down LED driver, which is designed in continuous current mode for driving the high-brightness LEDs from a wide input voltage of 6V to 36V. The MP24895 employs a hysteretic control scheme to regulate LED current. Moreover, the control scheme provides optimal loop stabilization and a very quick response time. For a high accuracy, the MP24895 senses LED current by an external high-side resistor. Its low 100mV average feedback voltage reduces power loss and improves the efficiency. The MP24895 implements PWM and analog dimming together on the EN/DIM pin. The MP24895 includes under-voltage lockout,t and thermal overload protection to prevent damage in the event of an output overload. The MP24895 is available in TSOT23-5 and QFN-6 packages.Internal 36V MOSFET Wide 6V-to-36V Input Range 1A Output Current High Efficiency Hysteretic Control PWM and Analog Dimming 1000:1 PWM Dimming Resolution UVLO, Thermal Shutdown Available in TSOT23-5 and QFN-6 Packages
