TE4-1A-DC-1-GL

Active

Switch Components

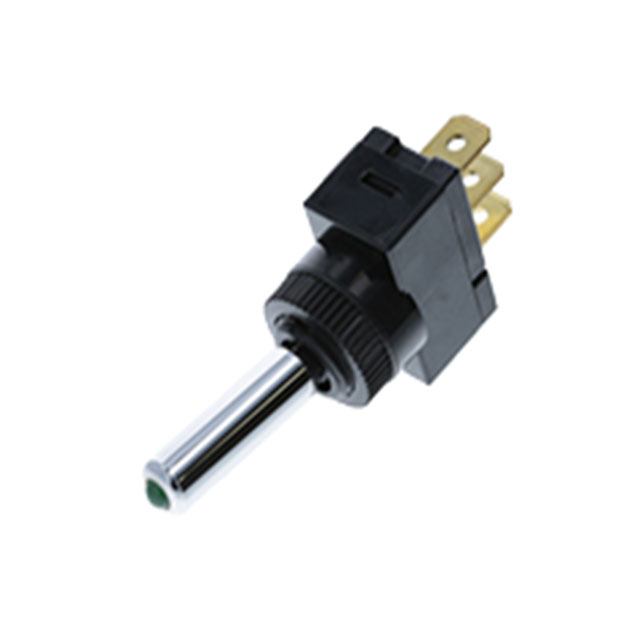

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TE4-1A-DC-1-GL

Actuator Length [x]	25 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Circuit	Voltage Rating - DC	Actuator Length [x]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Termination Style	Bushing Thread	Bushing Thread	Electrical Life	Actuator Material	Illumination	Switch Function	Illumination Voltage (Nominal)	Illumination Type, Color	Current Rating (Amps)
Switch Components TE4-1A-DC-1-RL	SPST	12 V	25 mm	Standard Round	-25 °C	85 °C	12.2 mm	Quick Connect - 0.250" (6.3mm)	M12	1 x 1	6000 Cycles	Brass Chrome Plated	Illuminated	On-Off	12 VDC	LED Red	20 A
Switch Components TE4-1A-DC-1-GL	SPST	12 V	25 mm	Standard Round	-25 °C	85 °C	12.2 mm	Quick Connect - 0.250" (6.3mm)	M12	1 x 1	6000 Cycles	Brass Chrome Plated	Illuminated	On-Off	12 VDC	Green LED	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.83
TME	N/A	1	$ 5.62

General part information

Toggle Switch SPST Panel Mount

Technical documentation and resources
