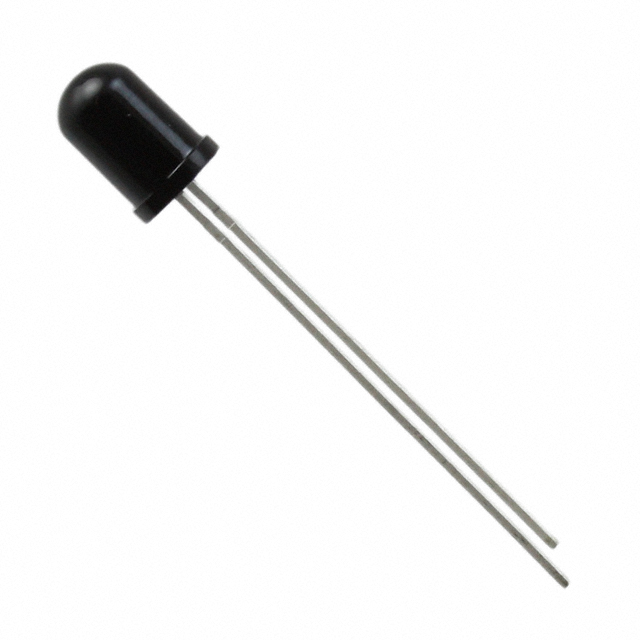

SFH 4546-AWBW

Active

ams-OSRAM USA INC.

EMITTER IR 5MM RADIAL

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 5MM RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4546-AWBW

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	100 mW/sr
Type	Infrared (IR)
Viewing Angle [custom]	40 °
Voltage - Forward (Vf) (Typ)	1.5 V
Wavelength	950 nm

Part	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Forward (Vf) (Typ)	Viewing Angle [custom]	Orientation	Wavelength	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - DC Forward (If) (Max) [Max]
ams-OSRAM USA INC. SFH 4546-AWBW	Through Hole	100 mW/sr	1.5 V	40 °	Top View	950 nm	Radial	-40 °C	100 °C	Infrared (IR)	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 950nm 1.5V 100mA 100mW/sr @ 100mA 40° Radial
