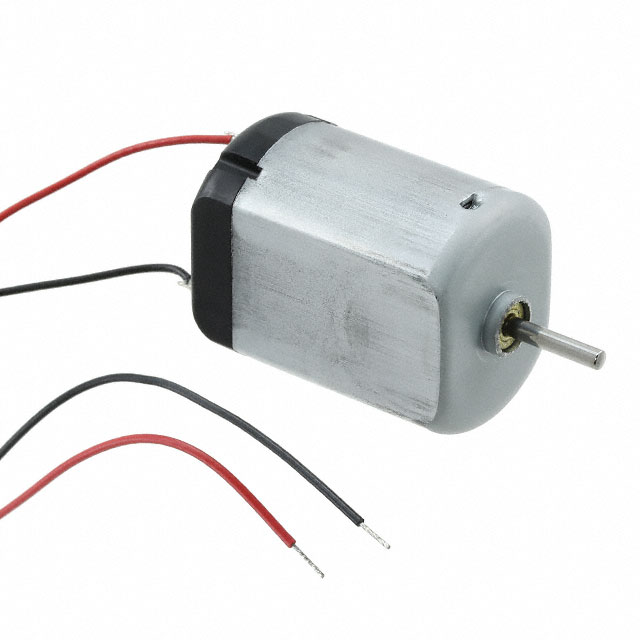

PAN14EE12MD
ActiveNMB TECHNOLOGIES
STANDARD MTR DC BRUSH 300MM LEAD
Deep-Dive with AI
Search across all available documentation for this part.
PAN14EE12MD
ActiveNMB TECHNOLOGIES
STANDARD MTR DC BRUSH 300MM LEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PAN14EE12MD |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 0.453 in |
| Length - Shaft and Bearing [x] | 11.5 mm |
| Motor Type | Brushed |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| RPM | 12800 RPM |
| Size / Dimension [diameter] | 24.2 mm |
| Size / Dimension [diameter] | 0.953 in |
| Termination Style | Wire Leads |
| Torque - Rated (oz-in / mNm) | 0.693 oz-in |
| Torque - Rated (oz-in / mNm) | 4.9 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.94 | |
| 5 | $ 3.73 | |||
| 10 | $ 3.65 | |||
| 25 | $ 4.27 | |||
| 50 | $ 4.12 | |||
| 100 | $ 3.97 | |||
| 400 | $ 3.69 | |||
| 800 | $ 3.65 | |||
Description
General part information
PAN14EE12 Series
Brushed DC Motor Standard 12,800 RPM 12VDC
