X-NUCLEO-CCA02M1
ObsoleteDIGITAL MEMS MICROPHONES EXPANSION BOARD BASED ON MP34DT01-M FOR STM32 NUCLEO.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-CCA02M1 |
|---|---|
| Contents | Board(s) |
| Platform | Nucleo |
| Type | Audio |
| Utilized IC / Part | MP34DT01-M |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
X-NUCLEO-CCA02M1 Series

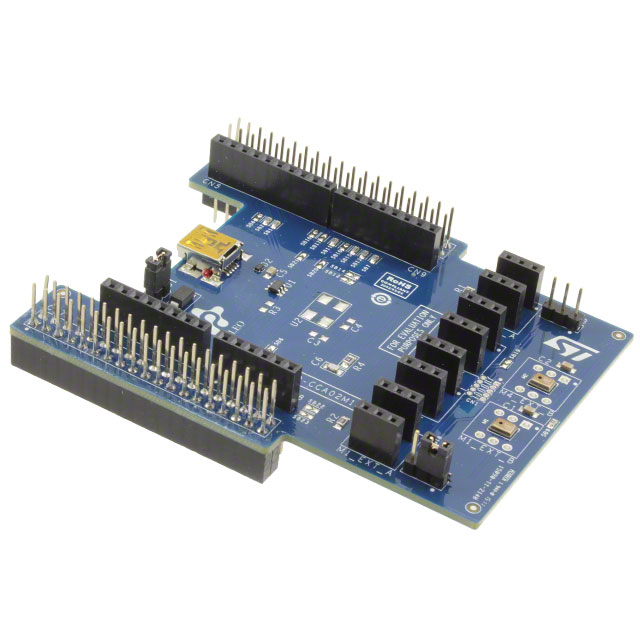

The X-NUCLEO-CCA02M1 is an evaluation board based on digital MEMS microphones. It is compatible with the ST morpho connector layout, and is designed around STMicroelectronics MP34DT01-M digital microphones. It has two microphones soldered onto the board and is compatible with digital microphone coupon boards such as STEVAL-MKI129Vx and STEVAL-MKI155Vx.
The X-NUCLEO-CCA02M1 allows synchronized acquisition and streaming of up to 4 microphones through I²S, SPI or DFSDM peripherals. It represents a quick and easy solution for the development of microphone-based applications as well as a starting point for audio algorithm implementation.
