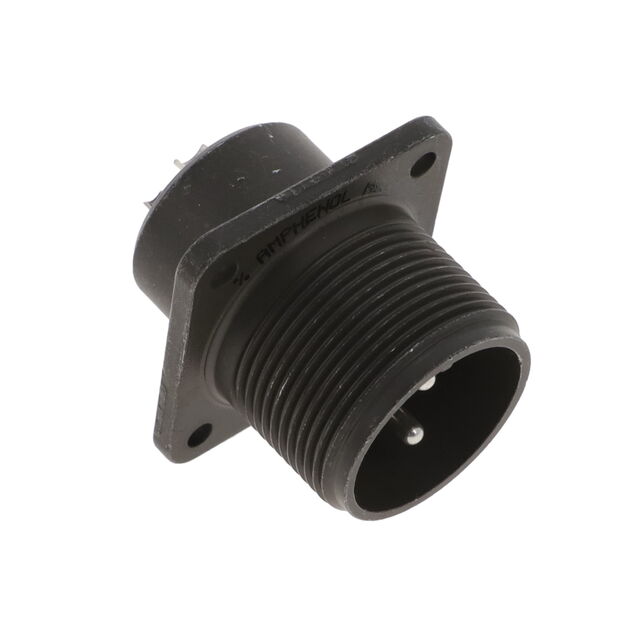

MS3102E16-9P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102E16-9P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102E16-9P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shielding	Unshielded

MS3102E16 Series

Part	Insert Material	Number of Positions	Shielding	Qualification	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Grade	Contact Material	Ingress Protection	Mounting Feature	Orientation	Shell Size - Insert	Current Rating (Amps)	Voltage Rating	Primary Material	Shell Finish	Contact Finish - Mating	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Industrial Operations MS3102E16-13P
Amphenol Industrial Operations MS3102E16S-4P	Neoprene	2	Unshielded	MIL-DTL-5015	Marine Military	-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Military	Copper Alloy	Environment Resistant	Flange	N	16S-4	13 A	900 VAC 1250 VDC	Metal	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy
Amphenol Industrial Operations MS3102E16S-8PX	Neoprene		Unshielded	MIL-5015	Marine Military	-55 °C	125 °C	Olive Drab	Male Pins Receptacle		Copper Alloy	Environment Resistant	Flange	X	16S-8			Metal	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy	22.22 mm	0.875 in
Amphenol Industrial Operations MS3102E16S-5P	Neoprene		Unshielded	MIL-DTL-5015	Marine Military	-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Military	Copper Alloy	Environment Resistant	Flange	N	16S-5	13 A		Metal	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy
Amphenol Industrial Operations MS3102E16S-4SW
Amphenol Industrial Operations MS3102E16-12S
Amphenol Industrial Operations MS3102E16-9P	Neoprene	4	Unshielded	MIL-DTL-5015	Marine Military	-55 °C	125 °C	Olive Drab	Male Pins Receptacle	Military	Copper Alloy	Environment Resistant	Flange	N		13 A 23 A		Metal	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy
Amphenol Industrial Operations MS3102E16-10P W/P CAP
Amphenol Industrial Operations MS3102E16S-3S
Amphenol Industrial Operations MS3102E16-9S	Neoprene	4	Unshielded	MIL-5015	Marine Military	-55 °C	125 °C	Olive Drab	Receptacle Female Sockets		Copper Alloy	Environment Resistant	Flange	N				Metal	Olive Drab Chromate over Cadmium	Silver	Aluminum Alloy	22.22 mm	0.875 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 36.92
		10	$ 32.33
		25	$ 30.93
		50	$ 29.94
		100	$ 28.94
		250	$ 27.34

Description

General part information

MS3102E16 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
