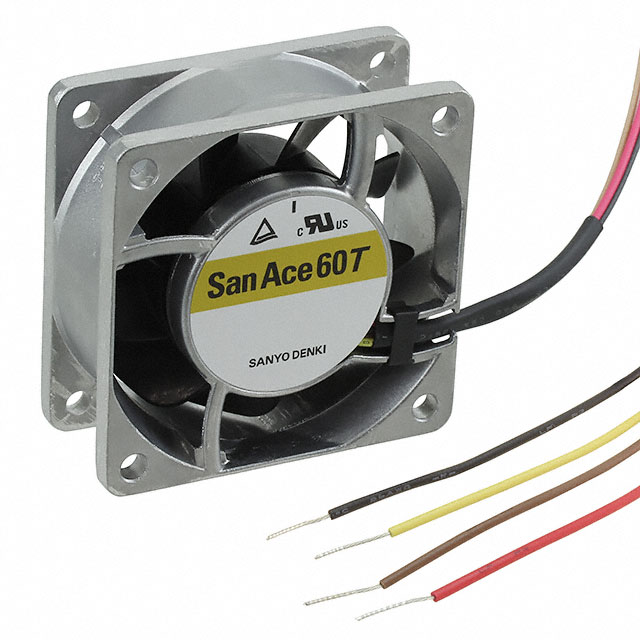

9GT0624P4G001

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GT0624P4G001

Air Flow	1.25 mł/min
Air Flow	44.5 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	52 dB
Operating Temperature [Max]	85 °C
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	6.72 W
RPM	10000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.976 in H2O
Static Pressure	243 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	99.79 g
Weight	0.22 lb
Width [y]	25 mm

Part	Fan Type	Power (Watts)	RPM	Width [y]	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Termination	Material - Blade	Air Flow	Air Flow	Noise	Current Rating (Amps)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated	Bearing Type	Lifetime @ Temp.	Approval Agency	Features
Sanyo Denki America Inc. 9GT0624G4002	Tubeaxial	6.72 W	10000 RPM	25 mm	0.222 lb	100.7 g	60 mm	60 mm	241.6 Pa	0.97 in H2O	2 Wire Leads	Plastic	1.25 mł/min	44.5 CFM	52 dB	0.28 A	Aluminum	-40 °C	-40 °C	85 °C	85 °C	24 VDC	Ball	40000 Hrs	CSA TUV UL
Sanyo Denki America Inc. 9GT0624P4G001	Tubeaxial	6.72 W	10000 RPM	25 mm	0.22 lb	99.79 g	60 mm	60 mm	243 Pa	0.976 in H2O	4 Wire Leads	Plastic	1.25 mł/min	44.5 CFM	52 dB	0.28 A	Aluminum	-40 °C	-40 °C	85 °C	85 °C	24 VDC	Ball	40000 Hrs	CSA TUV UL	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GT0624G4001	Tubeaxial	6.72 W	10000 RPM	25 mm	0.222 lb	100.7 g	60 mm	60 mm	241.6 Pa	0.97 in H2O	3 Wire Leads	Plastic	1.25 mł/min	44.5 CFM	52 dB	0.28 A	Aluminum	-40 °C	-40 °C	85 °C	85 °C	24 VDC	Ball	40000 Hrs	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 44.5 CFM (1.25m³/min) 4 Wire Leads
