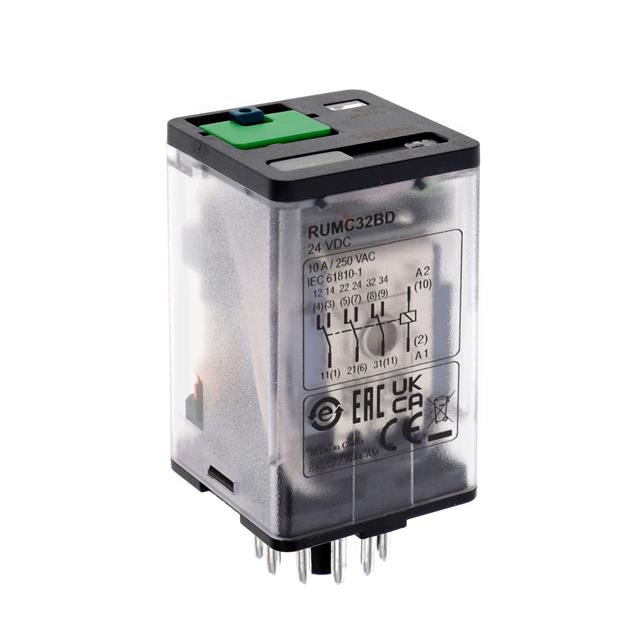

RUMC32BD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 3CO CYL PIN 10A@250V 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RUMC32BD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 3CO CYL PIN 10A@250V 24VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RUMC32BD

Approval Agency	CSA, UL, EAC
Coil Current	51.1 mA
Coil Resistance	470 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Load - Max Switching	2500 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RUMC32 Series

Part	Mounting Type	Coil Type	Operate Time	Contact Rating (Current)	Features	Release Time	Load - Max Switching	Approval Agency	Must Operate Voltage	Contact Form	Relay Type	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Switching Voltage	Coil Resistance	Contact Material	Termination Style	Coil Current
SQUARE D BY SCHNEIDER ELECTRIC RUMC32P7	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	184 VAC	3PDT (3 Form C)	General Purpose	34.5 VAC	-40 °C	55 °C	230 VAC	28 VDC 250 VAC	6.8 kOhms	Silver Nickel (AgNi)	Plug In	33.8 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32FD	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	88 VDC	3PDT (3 Form C)	General Purpose	11 VDC	-40 °C	55 °C	110 VDC	28 VDC 250 VAC	7.3 kOhms	Silver Nickel (AgNi)	Plug In	15.1 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32GD	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	100 VDC	3PDT (3 Form C)	General Purpose	12.5 VDC	-40 °C	55 °C	125 VDC	28 VDC 250 VAC	7.3 kOhms	Silver Nickel (AgNi)	Plug In	17.1 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32ED	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	38.4 VDC	3PDT (3 Form C)	General Purpose	4.8 VDC	-40 °C	55 °C	48 VDC	28 VDC 250 VAC		Silver Nickel (AgNi)	Plug In	26.7 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32BD	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	19.2 VDC	3PDT (3 Form C)	General Purpose	2.4 VDC	-40 °C	55 °C	24 VDC	28 VDC 250 VAC	470 Ohms	Silver Nickel (AgNi)	Plug In	51.1 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32JD	Chassis Mount	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	9.6 VDC	3PDT (3 Form C)	General Purpose	1.2 VDC	-40 °C	55 °C	12 VDC	28 VDC 250 VAC	120 Ohms	Silver Nickel (AgNi)	Plug In	100 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32F7	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	96 VAC	3PDT (3 Form C)	General Purpose	18 VAC	-40 °C	55 °C	120 VAC	28 VDC 250 VAC	1.7 kOhms	Silver Nickel (AgNi)	Plug In	70.6 mA
SQUARE D BY SCHNEIDER ELECTRIC RUMC32B7	Socketable	Non Latching	20 ms	10 A	Lighted Indicator Test Button	20 ms	280 W 2500 VA	CSA EAC UL	19.2 VAC	3PDT (3 Form C)	General Purpose	3.6 VAC	-40 °C	55 °C	24 VAC	28 VDC 250 VAC	72 Ohms	Silver Nickel (AgNi)	Plug In	333.3 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.54
		10	$ 20.46
		25	$ 19.39
		50	$ 18.31
		100	$ 17.23
		250	$ 16.16
		500	$ 15.25

Description

General part information

RUMC32 Series

General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
