MBT27H-S
ActiveHELLERMANNTYTON

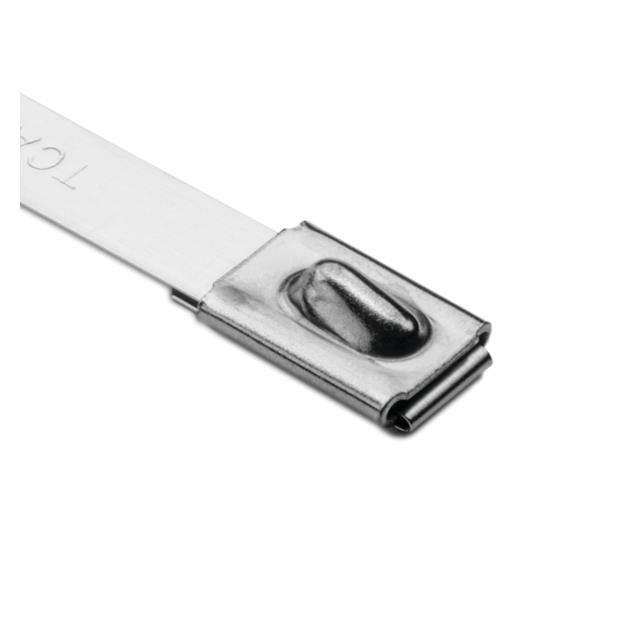

CABLE TIE, PK 50, 304 GRADE, STAINLESS STEEL, NATURAL, 685 MM, 7.9 MM, 203 MM, 450 LB
Deep-Dive with AI
Search across all available documentation for this part.
MBT27H-S
ActiveHELLERMANNTYTON
CABLE TIE, PK 50, 304 GRADE, STAINLESS STEEL, NATURAL, 685 MM, 7.9 MM, 203 MM, 450 LB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MBT27H-S |
|---|---|
| Bundle Diameter [diameter] | 203 mm |
| Bundle Diameter [diameter] | 7.99 in |
| Color | Silver |
| Length - Approximate | 26.75 in |
| Material | Stainless Steel 304 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 450 lbs |
| Tensile Strength | 204.12 kg |
| Width [x] | 0.311 " |
| Width [x] | 7.9 mm |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MBT27 Series
The MBT (metal ball tie) stainless steel cable ties are manufactured from SS304, have good resistance against water, oils, a variety of solvents, alcohol and petrol. Type SS304 is for general, fire resistant fastening applications where a strong high tensile strength cable tie is required.
