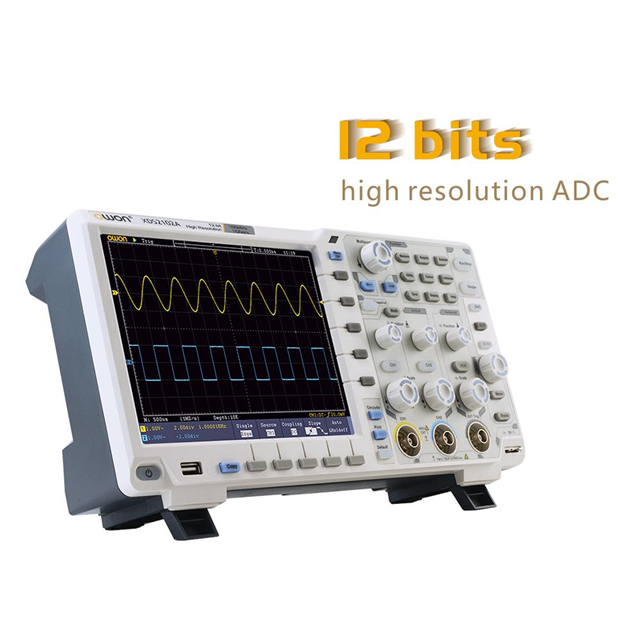

XDS2102A

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 2 CH 1GS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 100MHZ 2 CH 1GS/S

Technical Specifications

Parameters and characteristics for this part

Specification	XDS2102A

Bandwidth	100 MHz
Channels	2
Display Type	LCD - Color
Function	Record
Includes	USB Cable, Probe, Manual, Power Cord, Bag, Probe Tool
Input Impedance	1 M, 15 pF
Interface	RS232, Ethernet, USB
Rise Time (Typ)	3.5 ns
Sampling Rate (Per Second)	1 G
Type	Bench
Voltage - Input (Max)	300 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Type	Voltage - Input (Max)	Includes	Function	Bandwidth	Channels	Rise Time (Typ)	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Input Impedance	Display Type	Sampling Rate (Per Second)
Owon Technology Lilliput Electronics (USA) Inc XDS2102A	Bench	300 V	Bag Manual Power Cord Probe Probe Tool USB Cable	Record	100 MHz	2	3.5 ns	Ethernet RS232 USB	100 VAC	240 VAC	1 M 15 pF	LCD - Color	1 G

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 479.00

General part information

100 MHz Bench Oscilloscopes Ethernet, RS232, USB Interface LCD - Color Display 2 Channel CAT II 300V Record
