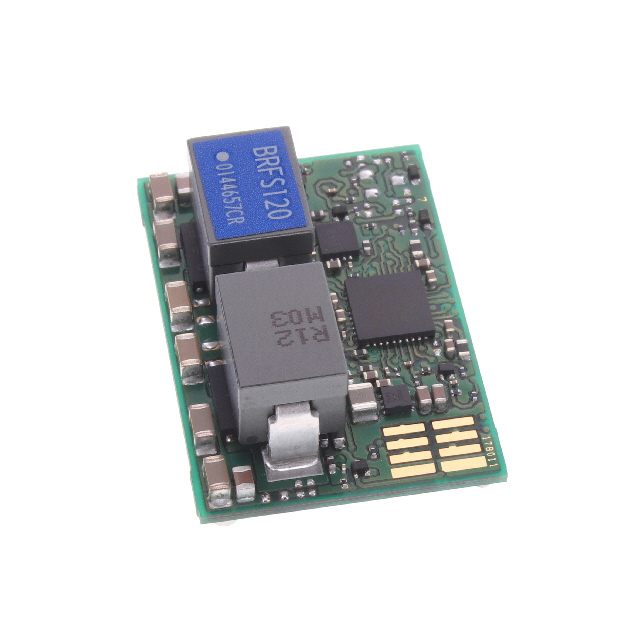

BRFS120-R

Active

Cosel USA, Inc.

DC DC CONVERTER 0.6-1.8V

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER 0.6-1.8V

Technical Specifications

Parameters and characteristics for this part

Specification	BRFS120-R

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Control Features	Active High, Enable
Current - Output (Max) [Max]	120 A
Efficiency	89 %
Features	Remote Sensing, OCP, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SMD Module
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	0.9 "
Size / Dimension [y]	22.9 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Approval Agency	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Type	Applications	Efficiency	Number of Outputs	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]
Cosel USA, Inc. BRFS120-R	4.5 V	1.8 V	0.6 V	120 A	CE cURus TUV	Active High Enable	85 °C	-40 °C	Surface Mount	14 V	14-SMD Module	Non-Isolated PoL Module	ITE (Commercial)	89 %	1	OCP Remote On/Off Remote Sensing	12.7 mm	0.9 "	22.9 mm	0.5 in	33 mm	1.3 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 67.58

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 1.8V 120A 4.5V - 14V Input
