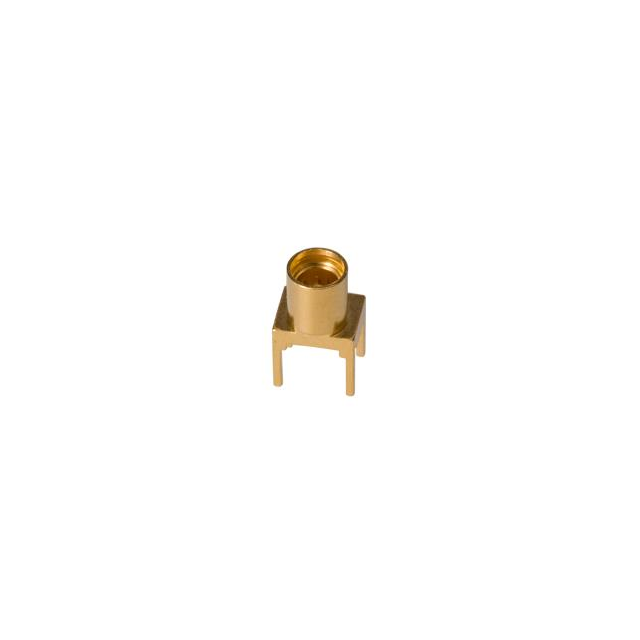

96_MMPX-50-0-3/111_NM-1

Active

Huber+Suhner, Inc.

CONN MMPX 0HZ TO 67GHZ 50OHM SOLDER ST SMD F GOLD OVER NICKEL PHOSPHORUS BULK

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

CONN MMPX 0HZ TO 67GHZ 50OHM SOLDER ST SMD F GOLD OVER NICKEL PHOSPHORUS BULK

Technical Specifications

Parameters and characteristics for this part

Specification	96_MMPX-50-0-3/111_NM-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMPX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	67 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

Part	Dielectric Material	Shield Termination	Mating Cycles	Impedance	Center Contact Material	Housing Color	Body Material	Body Finish	Contact Termination	Fastening Type	Number of Ports	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Frequency - Max [Max]	Connector Style	Voltage Rating
Huber+Suhner, Inc. 96_MMPX-50-0-2/111_NM-1	Polytetrafluoroethylene (PTFE)	Solder	500	50 Ohms	Beryllium Copper Brass	Gold	Brass	Gold	Solder	Snap-On	1	Gold	155 °C	-65 ░C	Female Socket Jack	Surface Mount Through Hole	67 GHz	MMPX
Huber+Suhner, Inc. 96_MMPX-50-0-3/111_NM-1	Polytetrafluoroethylene (PTFE)	Solder		50 Ohms	Beryllium Copper	Gold	Brass	Gold	Solder	Snap-On	1	Gold	155 °C	-65 ░C	Female Socket Jack	Through Hole	67 GHz	MMPX	170 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMPX Connector Jack, Female Socket 50 Ohms Through Hole Solder
