R191757000

Active

Radiall USA, Inc.

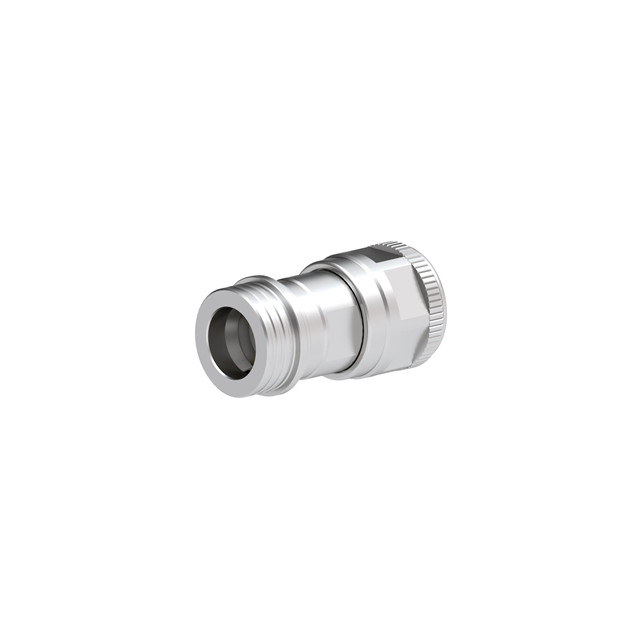

QN MALE - N MALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN MALE - N MALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R191757000

Adapter Series	N to QN
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, QN Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Push-Pull
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Fastening Type	Body Finish	Adapter Type	Convert From (Adapter End)	Body Material	Frequency - Max [Max]	Center Gender	Mounting Type	Impedance	Conversion Type	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Adapter Series	Center Contact Plating	Dielectric Material	Style	Adapter Series [Min]	Adapter Series [Max]
Radiall USA, Inc. R191757000	Push-Pull Threaded	White Bronze	Plug to Plug	N Plug Male Pin	Brass	6000 MHz	Male to Male	Free Hanging (In-Line)	50 Ohms	Between Series	Male Pin QN Plug	-55 °C	125 °C	Brass	N to QN	Silver	Polytetrafluoroethylene (PTFE)	Straight
Radiall USA, Inc. R191759000			Plug to Jack	QN Plug Male Pin	Brass	6000 MHz		Free Hanging (In-Line)	50 Ohms	Between Series	Female Socket N Jack	-55 °C	125 °C	Beryllium Copper		Silver	Polytetrafluoroethylene (PTFE)	Straight	QN	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 107.44

General part information

Adapter Coaxial Connector N Plug, Male Pin To QN Plug, Male Pin 50 Ohms
