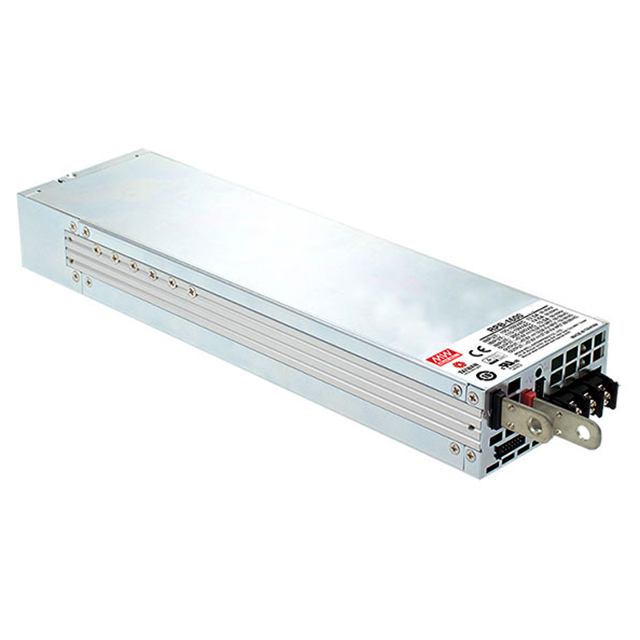

RPB-1600-48
ActiveMEAN WELL USA Inc.
BATT CHRGR ENCLOSED 57.6V 27.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPB-1600-48
ActiveMEAN WELL USA Inc.
BATT CHRGR ENCLOSED 57.6V 27.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPB-1600-48 |
|---|---|
| Approval Agency | CB, CE, cURus, TUV |
| Battery Cell Size | 48 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 27.5 A |
| Features | LED Indicator |
| Mounting Type | Rack Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 1600 W |
| Size / Dimension [x] | 300 mm |
| Size / Dimension [x] | 11.81 in |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Termination Style | Rectangular Connector |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 127 VDC |
| Voltage - Nominal | 57.6 V |
| Weight | 1870 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 466.00 | |
| 10 | $ 432.73 | |||
| 25 | $ 374.14 | |||
Description
General part information
RPB-1600 Series
Enclosed Battery Charger 57.6V 27.5A 48V
