50A60-01-1-05N

Active

Grayhill Inc.

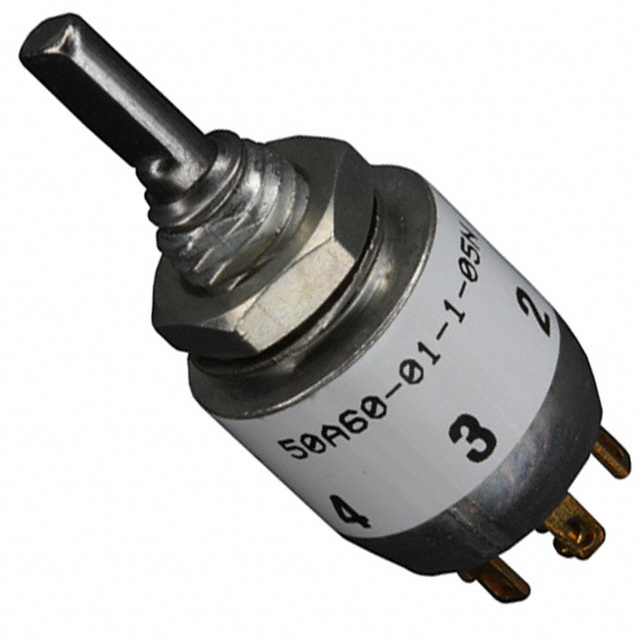

ROTARY SWITCH, SOLDER LUG, 5 POSITION, 1 POLE, 60 °, 150 MA, 115 V, 50 SERIES

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY SWITCH, SOLDER LUG, 5 POSITION, 1 POLE, 60 °, 150 MA, 115 V, 50 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	50A60-01-1-05N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Circuit per Deck	SP5T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	1
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Actuator Length [x]	Number of Poles per Deck	Current Rating (Amps)	Contact Finish	Actuator Type [diameter]	Actuator Type	Voltage Rating - AC	Circuit per Deck	Number of Decks [custom]	Termination Style	Index Stops	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Contact Timing	Number of Positions
Grayhill Inc. 50A60-01-1-03N	9.53 mm	1	150 mA 200 mA	Gold	3.17 mm	Flatted	115 V	SP3T	1	Solder Lug	Fixed	18.77 mm	6.45 mm	28 V	Non-Shorting
Grayhill Inc. 50A60-01-2-03N	9.53 mm	2	150 mA 200 mA	Gold	3.17 mm	Flatted	115 V	DP3T	1	Solder Lug	Fixed	18.77 mm	6.45 mm	28 V	Non-Shorting
Grayhill Inc. 50A60-01-1-05N	9.53 mm	1	150 mA 200 mA	Gold	3.17 mm	Flatted	115 V	SP5T	1	Solder Lug	Fixed	18.77 mm	6.45 mm	28 V	Non-Shorting
Grayhill Inc. 50A60-01-1-02N	9.53 mm	1	150 mA 200 mA	Gold	3.17 mm	Flatted	115 V	SPDT	1	Solder Lug	Fixed	18.77 mm	6.45 mm	28 V	Non-Shorting	2
