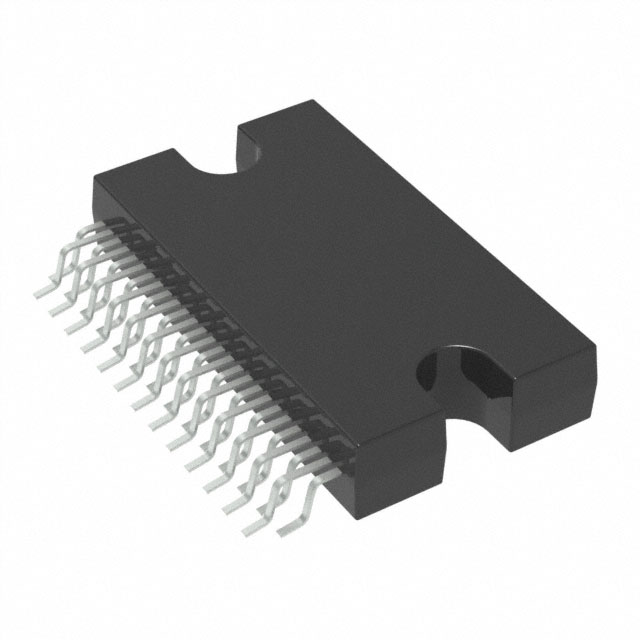

TDF8541JS/N2,512

Obsolete

Freescale Semiconductor - NXP

IC AMP CLSS AB QUAD 64W 27DBSMSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDF8541JS/N2,512

Features	Short-Circuit and Thermal Protection, Standby, Mute, I2C, Depop
Max Output Power x Channels @ Load	4, 64 W
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Type	4-Channel (Quad)
Package / Case	27-PowerSMD Module
Supplier Device Package	27-DBSMSP
Type	Class AB
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	6 V

TDF854 Series

Part	Mounting Type	Output Type	Features	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP TDF8548AJ/N1U	Through Hole	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	28 W	18 V	6 V	Class AB	27-SIP Formed Leads
Freescale Semiconductor - NXP TDF8546ATH/N1,118	Surface Mount	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	4 Ohm 25 W	18 V	6 V	Class AB	36-BSSOP Exposed Pad	0.433 in 11 mm	36-HSOP
Freescale Semiconductor - NXP TDF8548ATH/N1ZJ	Surface Mount	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	28 W	18 V	6 V	Class AB	36-BSSOP Exposed Pad	0.433 in 11 mm	36-HSOP
Freescale Semiconductor - NXP TDF8546SD/N1,112	Through Hole	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	4 Ohm 25 W	18 V	6 V	Class AB	27-SIP Formed Leads		27-RDBS
Freescale Semiconductor - NXP TDF8544J/N2,112	Through Hole	4-Channel (Quad)	Depop I2C Mute Short-Circuit and Thermal Protection Standby	4	28 W	18 V	6 V	Class AB	27-SIP Formed Leads
Freescale Semiconductor - NXP TDF8546AJ/N1,112	Through Hole	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	4 Ohm 25 W	18 V	6 V	Class AB	27-SIP Formed Leads
Freescale Semiconductor - NXP TDF8548SD/N1,112	Through Hole	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	28 W	18 V	6 V	Class AB	27-SIP Formed Leads		27-RDBS
Freescale Semiconductor - NXP TDF8541JS/N2,512	Surface Mount	4-Channel (Quad)	Depop I2C Mute Short-Circuit and Thermal Protection Standby		4 64 W	18 V	6 V	Class AB	27-PowerSMD Module		27-DBSMSP	105 °C	-40 °C
Freescale Semiconductor - NXP TDF8544SD/N2,112	Through Hole	4-Channel (Quad)	Depop I2C Mute Short-Circuit and Thermal Protection Standby	4	28 W	18 V	6 V	Class AB	27-SIP Formed Leads		27-RDBS
Freescale Semiconductor - NXP TDF8546JS/N1,512	Surface Mount	4-Channel (Quad)	Depop Short-Circuit Thermal Protection	4	4 Ohm 25 W	18 V	6 V	Class AB	27-PowerSMD Module		27-DBSMSP
