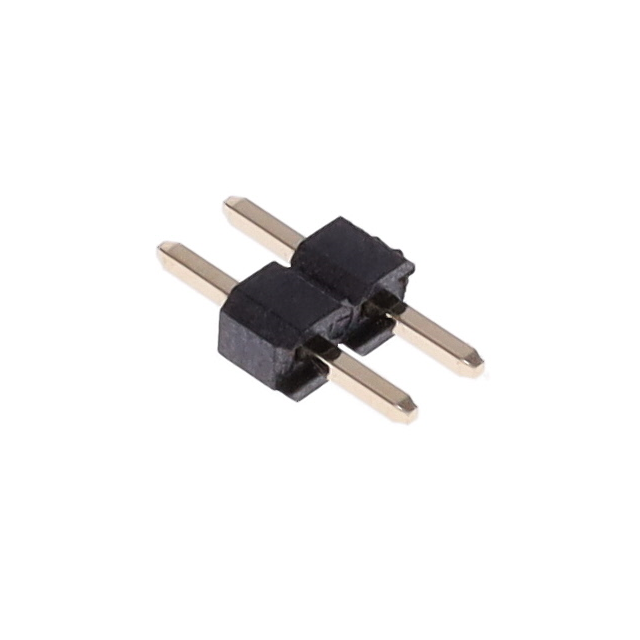

G800LF306018EU
ActiveAmphenol ICC (Commercial Products)
PIN HEADER 2.54MM PITCH STR DIP,
Deep-Dive with AI
Search across all available documentation for this part.
G800LF306018EU
ActiveAmphenol ICC (Commercial Products)
PIN HEADER 2.54MM PITCH STR DIP,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G800LF306018EU |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.13 in |
| Contact Length - Mating | 3.3 mm |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Overall Contact Length | 9.14 mm |
| Overall Contact Length | 0.36 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.13 | |
| 10 | $ 0.10 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.05 | |||
Description
General part information
G800LF3 Series
Connector Header Through Hole 2 position 0.100" (2.54mm)
