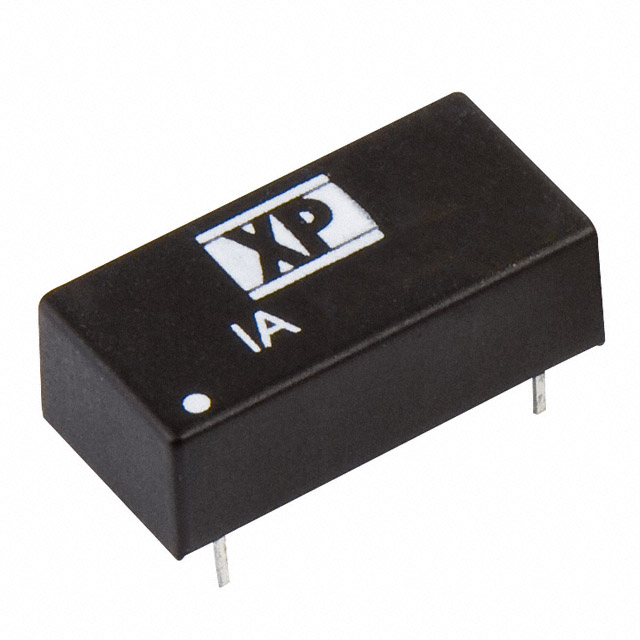

IA1212D
ActiveXP POWER
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IA1212D
ActiveXP POWER
DC DC CONVERTER +/-12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IA1212D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 42 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [z] | 6.4 mm |
| Size / Dimension [z] | 0.25 " |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.16 | |
| 5 | $ 5.98 | |||
| 10 | $ 5.79 | |||
| 25 | $ 5.54 | |||
| 100 | $ 5.17 | |||
Description
General part information
IA1212 Series
Isolated Module DC DC Converter 2 Output 12V -12V 42mA 10.8V - 13.2V Input
