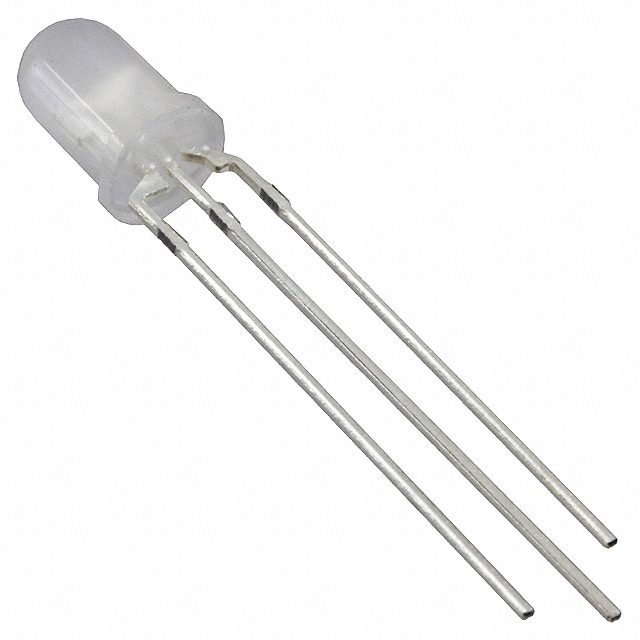

VAOB-5GADE2-C
ActiveVisual Communications Company - VCC
LED GREEN/RED DIFFUSED T/H
Deep-Dive with AI
Search across all available documentation for this part.
VAOB-5GADE2-C
ActiveVisual Communications Company - VCC
LED GREEN/RED DIFFUSED T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOB-5GADE2-C |
|---|---|
| Color | Red, Green |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 8.85 mm |
| Lens Size [diameter] | 4.8 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 80 mcd, 100 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Wavelength - Dominant | 570 nm, 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.72 | |
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 25000 | $ 0.21 | |||
Description
General part information
VAOB-5GADE2 Series
Green, Red 570nm Green, 640nm Red LED Indication - Discrete 2V Green, 2V Red Radial
Documents
Technical documentation and resources
No documents available
