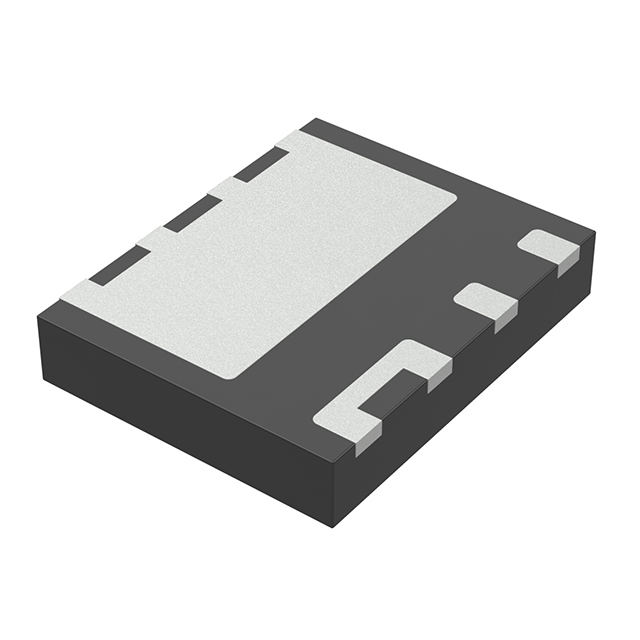

MP9989GV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
CCM/DCM FLYBACK IDEAL DIODE WITH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP9989GV-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
CCM/DCM FLYBACK IDEAL DIODE WITH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP9989GV-Z |
|---|---|
| Applications | General Purpose |
| Current - Supply | 4 mA |
| Delay Time - OFF | 25 ns |
| Delay Time - ON | 20 ns |
| FET Type | N-Channel |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-PowerVDFN |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | 8-QFN (4x5) |
| Type | Flyback |
| Voltage - Supply [Max] | 13 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 2.12 | |||
| 100 | $ 1.71 | |||
| 500 | $ 1.68 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 2.12 | |||
| 100 | $ 1.71 | |||
| 500 | $ 1.68 | |||
| Tape & Reel (TR) | 5000 | $ 1.68 | ||
Description
General part information
MP9989 Series
OR Controller Flyback N-Channel 1:1 8-QFN (4x5)
