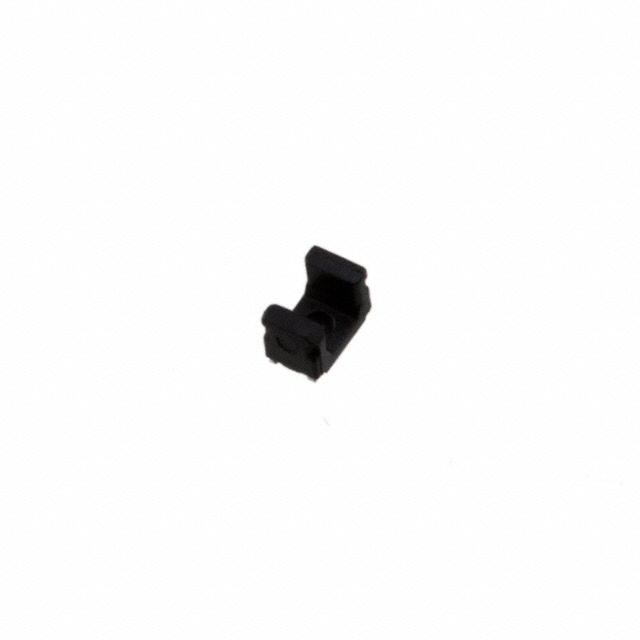

GP1S396HCPSF
ActiveSHARP/Socle Technology
SENSOR OPT SLOT NPN MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP1S396HCPSF
ActiveSHARP/Socle Technology
SENSOR OPT SLOT NPN MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP1S396HCPSF |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Current - DC Forward (If) (Max) [Max] | 30 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector |
| Package / Case | Module |
| Response Time | 30 µs |
| Sensing Method | Through-Beam |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.01 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 1.01 | ||
| 10 | $ 0.78 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.55 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.42 | |||
| Tape & Reel (TR) | 2500 | $ 0.33 | ||
| 5000 | $ 0.30 | |||
| 7500 | $ 0.29 | |||
Description
General part information
GP1S396 Series
Optical Sensor Through-Beam 0.047" (1.2mm) NPN - Open Collector Module
