101590NP-HA

Active

LAPP

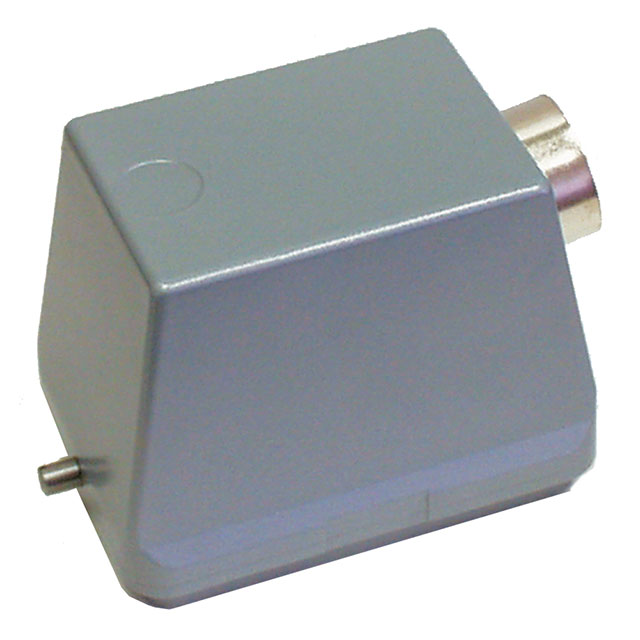

CONN HOOD HA64 SE 1-1/4"

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HA64 SE 1-1/4"

Technical Specifications

Parameters and characteristics for this part

Specification	101590NP-HA

Connector Type	Hood
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HA64
Size / Dimension [x]	5.118 in
Size / Dimension [x]	132 mm
Size / Dimension [y]	3.543 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	4.134 "
Size / Dimension [z]	105 mm
Style	Side Entry
Thread Size	NPT-5/4

Part	Housing Finish	Size	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Housing Color	Style	Connector Type	Ingress Protection	Lock Location	Housing Material	Thread Size
LAPP 101590NP-HA	Powder Coated	HA64	125 °C	-40 °C	Cover	4.134 "	5.118 in	3.543 in	90 mm	105 mm	132 mm	Gray	Side Entry	Hood	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Aluminum Alloy	NPT-5/4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-5/4 HA64 IP65 - Dust Tight, Water Resistant
