R-10224-16
ActiveTE Connectivity Measurement Specialties

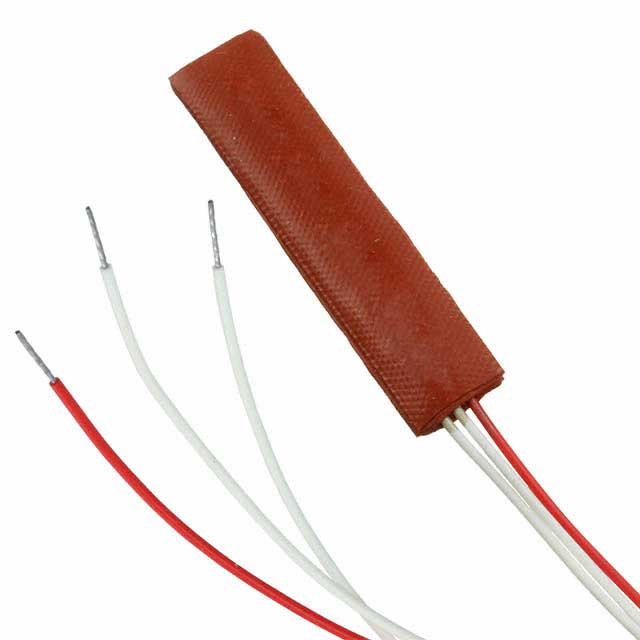

SENSOR RTD 100OHM PROBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R-10224-16
ActiveTE Connectivity Measurement Specialties
SENSOR RTD 100OHM PROBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R-10224-16 |
|---|---|
| Accuracy | 0.5 % |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 220 °C |
| Operating Temperature [Min] | -50 °C |
| Resistance @ 0°C | 100 Ohms |
| RTD Material | Platinum (Pt) |
| Temperature Coefficient | 3850 ppm/°C |
| Termination | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.35 | |
| 5 | $ 92.24 | |||
| 10 | $ 85.73 | |||
| 25 | $ 77.82 | |||
| 50 | $ 72.33 | |||
| 100 | $ 67.78 | |||
Description
General part information
R-10224 Series
100 Ohms RTD Platinum (Pt) 3850ppm/°C Probe
Documents
Technical documentation and resources
