DSEP60-12AR

Active

IXYS

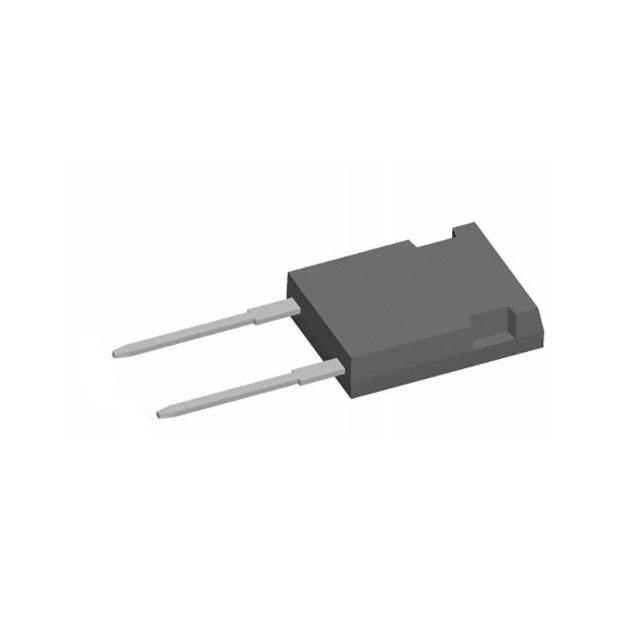

DIODE GP 1.2KV 60A ISOPLUS247

Search across all available documentation for this part.

Active

IXYS

DIODE GP 1.2KV 60A ISOPLUS247

Technical Specifications

Parameters and characteristics for this part

Specification	DSEP60-12AR

Current - Average Rectified (Io)	60 A
Current - Reverse Leakage @ Vr	650 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	ISOPLUS247™
Reverse Recovery Time (trr)	40 ns
Speed	200 mA, 500 ns
Supplier Device Package	ISOPLUS247™ (BR)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If [Max]	2.66 V

Part	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F
IXYS DSEP60-025A	30 ns	1.31 V	200 mA 500 ns	650 µA	60 A	Through Hole	175 ░C	-55 C	TO-247-2	250 V	Standard	TO-247AD
IXYS DSEP60-12A	40 ns		200 mA 500 ns	650 µA	60 A	Through Hole	175 ░C	-55 C	TO-247-2	1.2 kV	Standard	TO-247AD	2.66 V
IXYS DSEP60-12AR	40 ns		200 mA 500 ns	650 µA	60 A	Through Hole	175 ░C	-55 C	ISOPLUS247™	1.2 kV	Standard	ISOPLUS247™ (BR)	2.66 V
IXYS DSEP60-12AZ-TUB	80 ns		200 mA 500 ns	650 µA	60 A	Surface Mount	175 ░C	-55 C	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1.2 kV	Standard	TO-268AA (D3Pak-HV)	2.66 V	30 pF
IXYS DSEP60-04A	30 ns	1.5 V	200 mA 500 ns	650 µA	60 A	Through Hole	175 ░C	-55 C	TO-247-2	400 V	Standard	TO-247
IXYS DSEP60-06A	35 ns	2.04 V	200 mA 500 ns	650 µA	60 A	Through Hole	175 ░C	-55 C	TO-247-2	600 V	Standard	TO-247AD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 60A Through Hole ISOPLUS247™ (BR)
