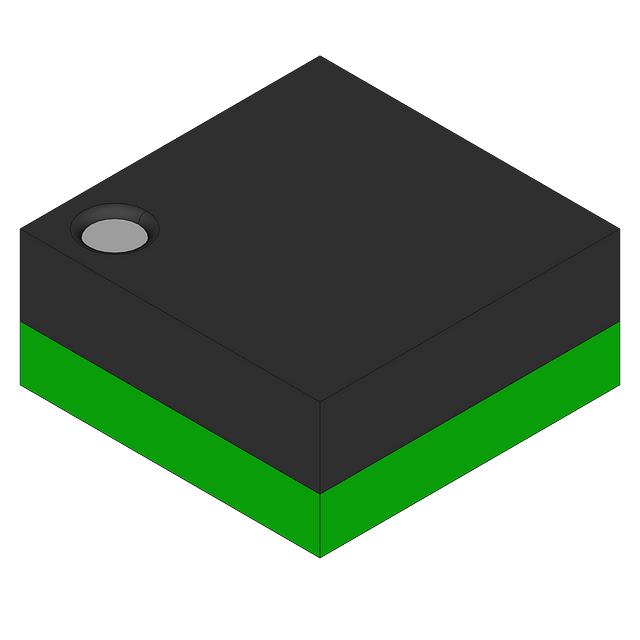

LM3501TLX-16/NOPB
ActiveNational Semiconductor
IC LED DRIVER RGLTR 400MA 8USMD
Deep-Dive with AI
Search across all available documentation for this part.
LM3501TLX-16/NOPB
ActiveNational Semiconductor
IC LED DRIVER RGLTR 400MA 8USMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM3501TLX-16/NOPB |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 400 mA |
| Frequency | 1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-WFBGA |
| Supplier Device Package | 8-uSMD |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 16 V |
| Voltage - Supply (Max) [Max] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 245 | $ 1.23 | |
Description
General part information
LM3501 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 400mA (Switch) 8-uSMD
Documents
Technical documentation and resources
No documents available
